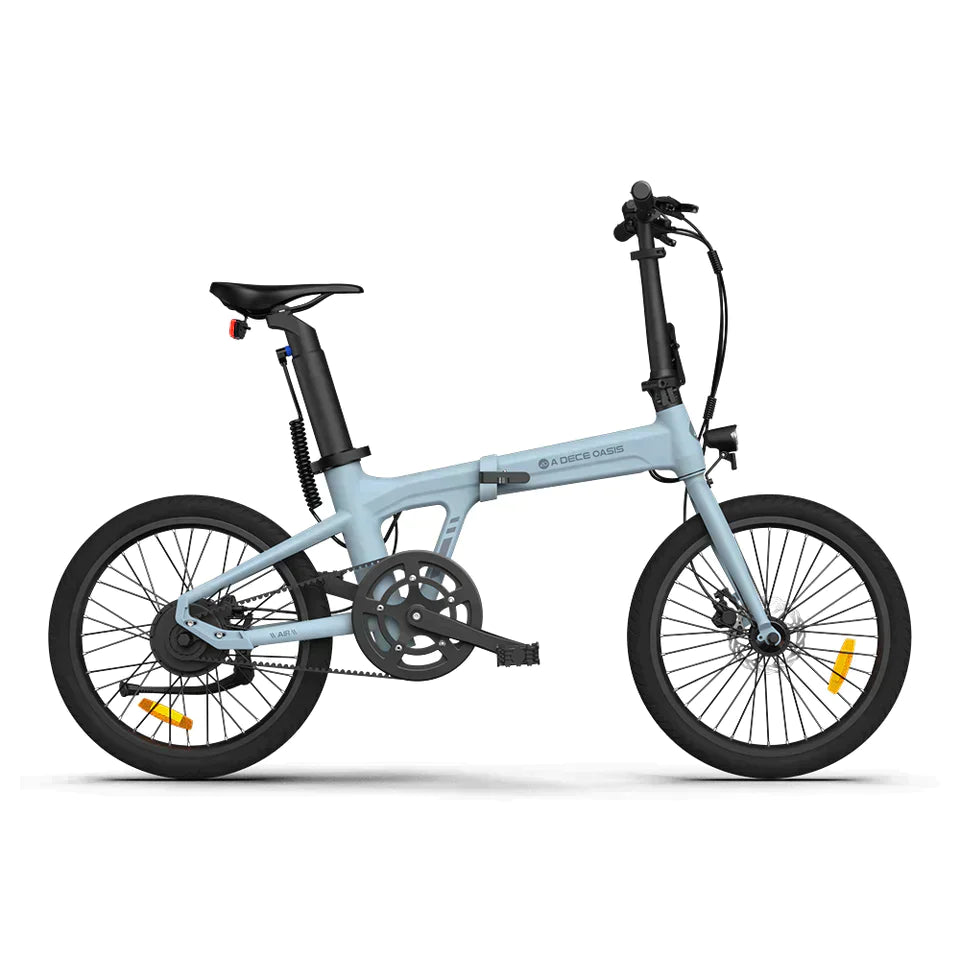

ADO Air 20 Folding Electric Bike
Free Shipping
Highlights
ADO A20 AIR foldable electric bike, Range 100km, Carbon Belt, Hydraulic Brakes
The 20-inch foldable ADO A20 Air electric bike has a lightweight drivetrain and storage that takes up little room. Urban riding is more pleasant and valuable because of the ideal combination of a torque sensor, a carbon belt drive, and an incredibly light aluminum frame. Due to its up to 100km of autonomy, the A20 Air is the ultimate travel partner for commuting across the city in comfort. You can access the LCD screen of the device or the ADO Ebike app to view your data in real-time.
Foldable and incredibly low-weight design
This type is ideal if you want a simple bike to carry and store. It weighs only 17kg because it is composed of aluminium, which is relatively light. Also, you may store it effortlessly thanks to its three-segment folding method in a boot, a lift, or an office.
Driven by a Carbon belt
The A20 Air’s look is enhanced by the Carbon Belt DriveTM system, which also addresses the issue of excessive engine noise. Enjoy up to 10.000 km of maintenance-free use with this system, which has a weatherproof polyurethane exterior and is the best replacement for traditional belts.
Torque Sensor for steady acceleration
With ADO’s new G-Drive 3.0 control system, you can accelerate more smoothly and ride at a speed that is both safe and enjoyable. Every action is easily translated into power thanks to its sensor’s ability to detect pedal force and deliver real-time assistance output.
Samsung Battery with a long lifespan
Because of its Thick Round size and high-quality 36V 10Ah 21700 Samsung lithium battery, the saddle itself is nicely concealed. This electric bike has a battery that gives it a range of up to 100 km and a top speed of 25 km/h (15.5 mp/h) along with its 250W brushless motor. Your ADO will be prepared to ride around town as frequently as you wish after about 4-6 hours of battery charging.
Visualize your rides on a screen or an app
The ADO A20 Air has a Bluetooth connection that lets you sync your bicycle with your own device using the ADO Ebike app, which lets you control your journey, define routes, and more. If you’d want, you may also access information such as temperature, humidity, weight, time, and others through the bike’s own integrated colour IPS screen with IPX7.
Hydraulic Disc Brakes
It has excellent stopping power and is quite efficient. Also, it functions admirably in adverse weather and sudden stops.
IPS display
IPX7 is waterproof, oil-proof, and scratch-proof grade for the IPS intelligent colour screen. You can also consult data such as temperature, humidity, weight, time and others through the colour IPS screen with IPX7 integrated into the bike itself.
The 360Wh battery uses high-quality Samsung cells and is neatly integrated into the seat post – this is a design we’re seeing more often, on folding e-bikes like the Fiido X and other models. The only thing I didn’t like about this battery is the visible cable. Maybe it could have been designed to plug in underneath like on the Mycle Compact for a cleaner look.
Technical Specification
|
Range |
100 km max range |
|
Speed |
25 km/h unlockable |
|
Net Weight |
16 kg |
|
Certificate |
SGS CE |
|
Suspension |
without |
|
Transmission |
none |
|
Tyre Size |
20*1.95 Inch |
|
Pedal Assist |
Torque sensior |
|
Assist Intelligent |
0-3 level pedal assist |
|
Rider Heights |
150cm-200cm |
|
Weight Capacity |
120kg |
|
Working Temperature |
-10~50°C |
|
Motor |
CE Verison: 250W |
| Intl. Version: 350W | |
|
Battery |
Samsung 36V/9.6 Ah |
|
Throttle |
CE Version：Without throttle International version：Thumb throttle |
|
Charging Time |
4-6 hours |
|
Display |
IPS Color Display |
|
Torque |
CE Verison: 37N.m |
| Inter Version: 42N.m | |
|
Frame |
Lightweight Aluminum Frame |
|
Brakes |
Hydraulic disc brakes |
|
Wheels |
Double Walled Aluminum |
|
Fork |
Standard |
|
Headlight |
IPX5 Waterproof 1200lumen |
|
Tail Light |
Relector Tail Light |
|
Chain Ring |
Carbon Belt |
|
Pedals |
Folding Pedals |
|
Seat |
Standard |
|
Waterproof |
IPX5 |
| Throttle | CE Version-Without throttle and International version-Thumb throttle |
To start a return, you can chat with us or mail us at support@letscycle.ie. If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.Unfortunately we wont be able to pay for the return but we will be able to ship the new item free of cost You can always contact us for any return question at support@letscycle.ie
Damages and issues : Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.Please don't open the packaging and drive the scooter/bike if there are issues with it as we wont be able to accept returns of used items. Exchanges : The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. Exceptions : Unfortunately gift cards cant be refunded Refunds : We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method minus the initial shipping cost ,restocking fee and transaction charges. Please remember it can take some time for your bank or credit card company to process and post the refund too. Please note that the manufacturer reserves the right of refund. If they find that product has been used , or not in the same condition as sent, they will refuse the refund Cancellations : A fee of 20 euros or total transaction charges (which ever is higher) would be charged for cancellation. If the item is already shipped and package returned total shipping would be charged(depending on weight of goods)
Shipping We usually deliver within 5-10 working days. • The shipping time mentioned in the guide does not include the processing time of the order. Order processing time usually takes 1-3 business days
Delivery of goods to certain areas may be affected due to the coronavirus (COVID-19) epidemic. For any queries, please chat with us
Kindly note that the shipping guide is for reference only. The shipping time are calculated by using business days and delays maybe caused by force majeure, natural disasters, inclement weather, public holidays, and factors out of our control. Customers will be notified about the shipping status via email after the package been dispatched. And customers also can track the order through the button Order Status. Reminder: The estimated shipping time is a general guide and does not apply to certain remote areas.
Note: • The shipping time mentioned in the guide does not include the processing time of the order. Order processing time usually takes 1-3 business days • The delivery guide does not apply to certain selected remote locations.
💝 Return & Refund Guarantee - 30 Days Hassle Free Returns & 12 Months Warranty. Please refer to t&C .
📞 Customer Support - Please email us at support@pogocycles.com. Our support team will reply within 8 hours.

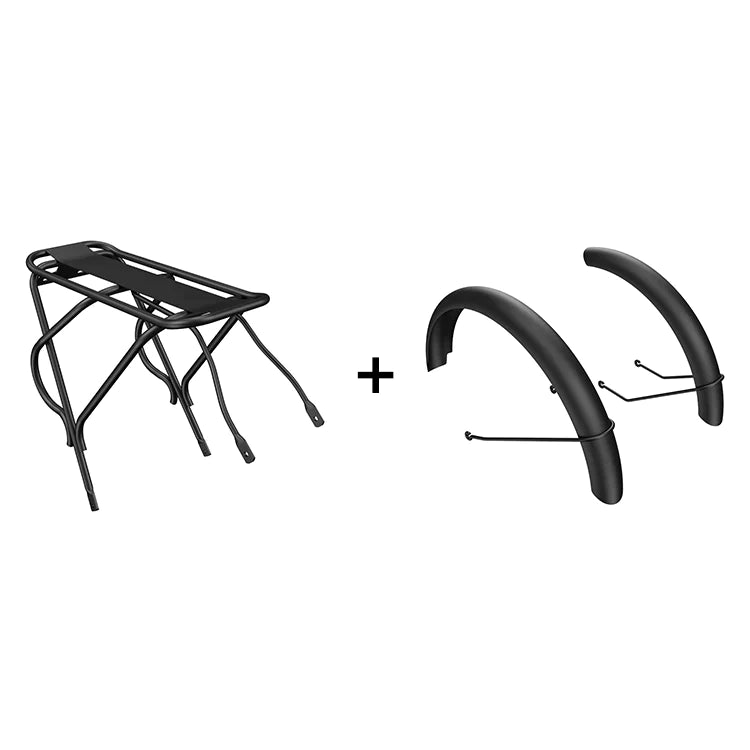

*Accesories shown in the pictures may be optional or available to buy seperately *All bikes are water resistant. For extra protection do cover your screens with plastic sheet to avoid water ingress when driving in rain
