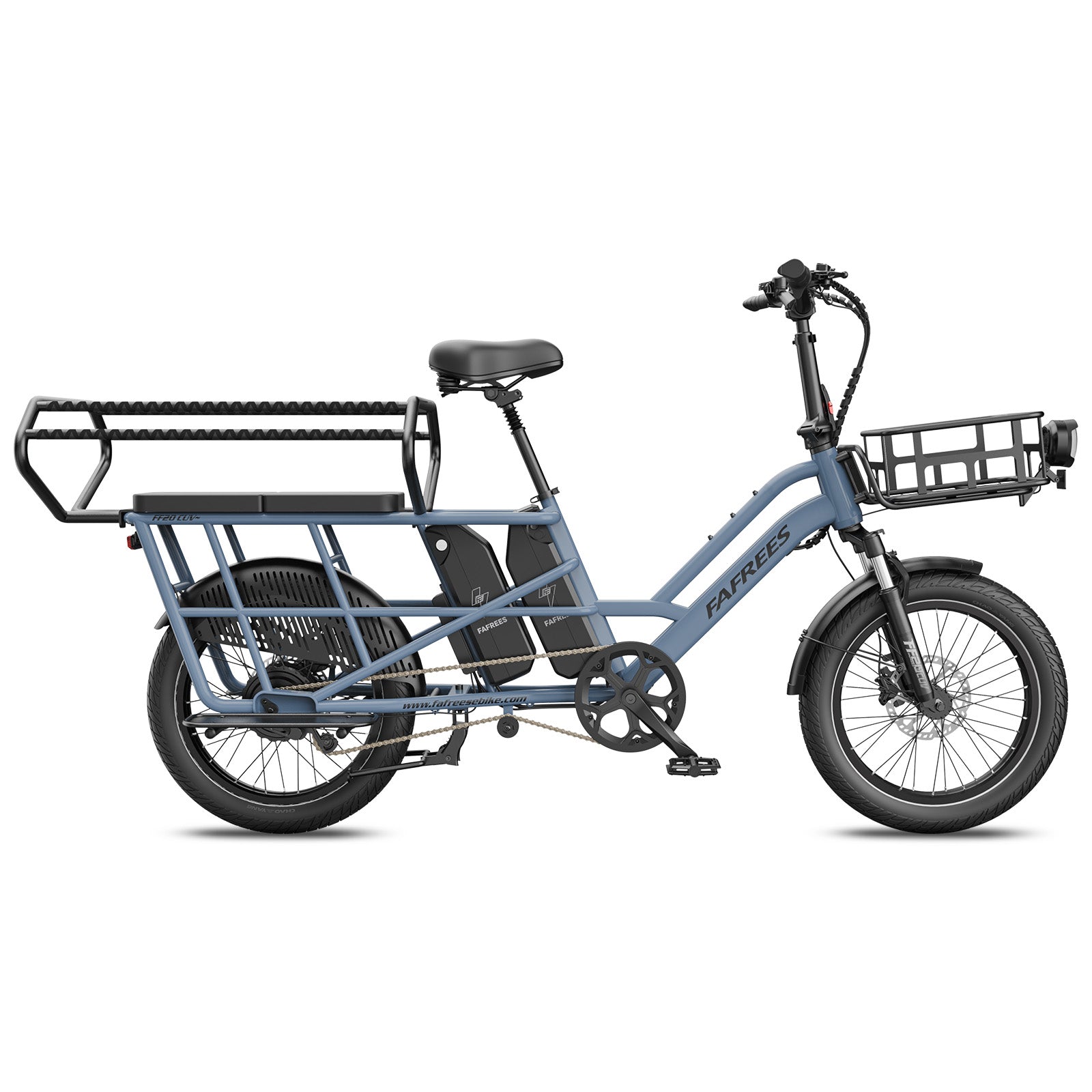

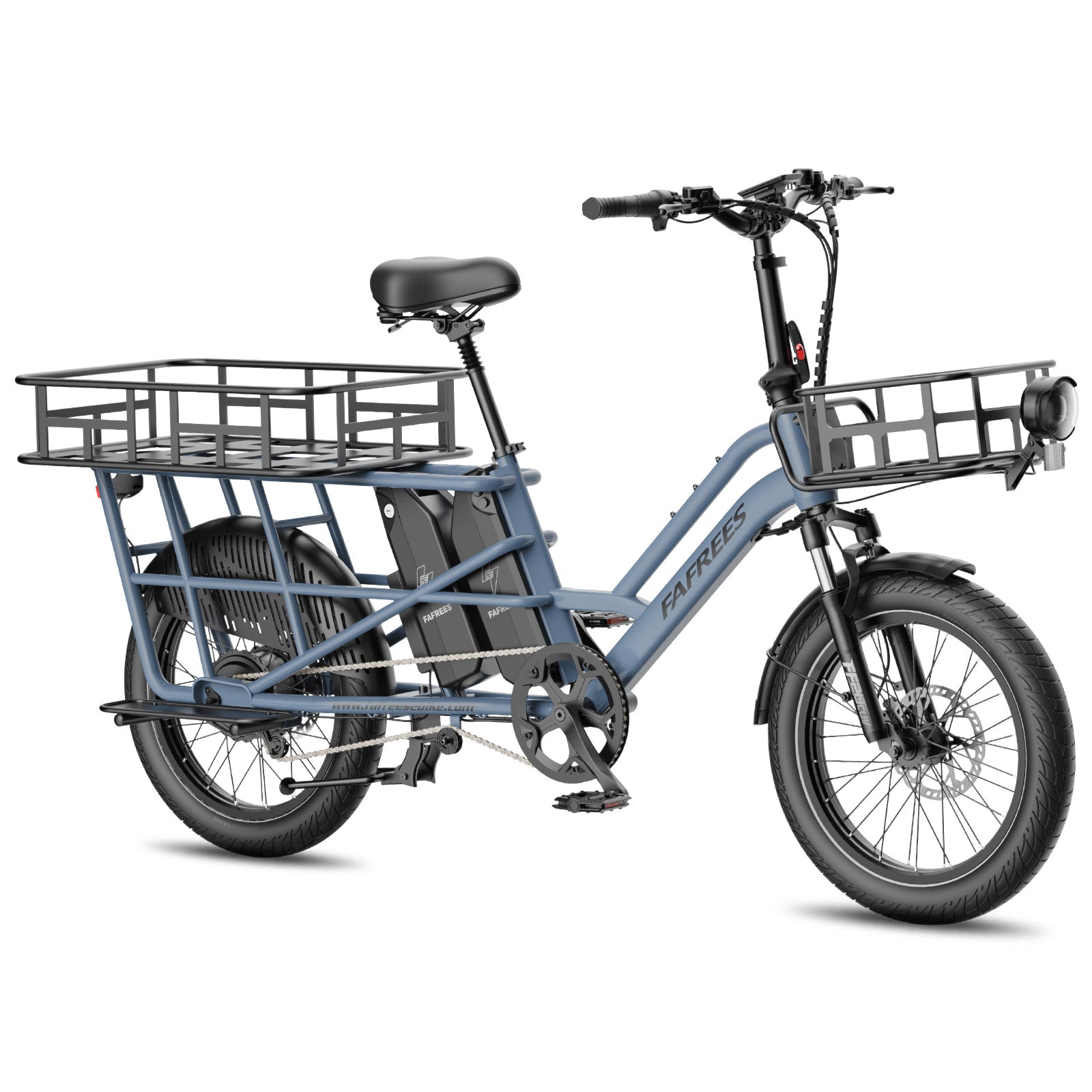

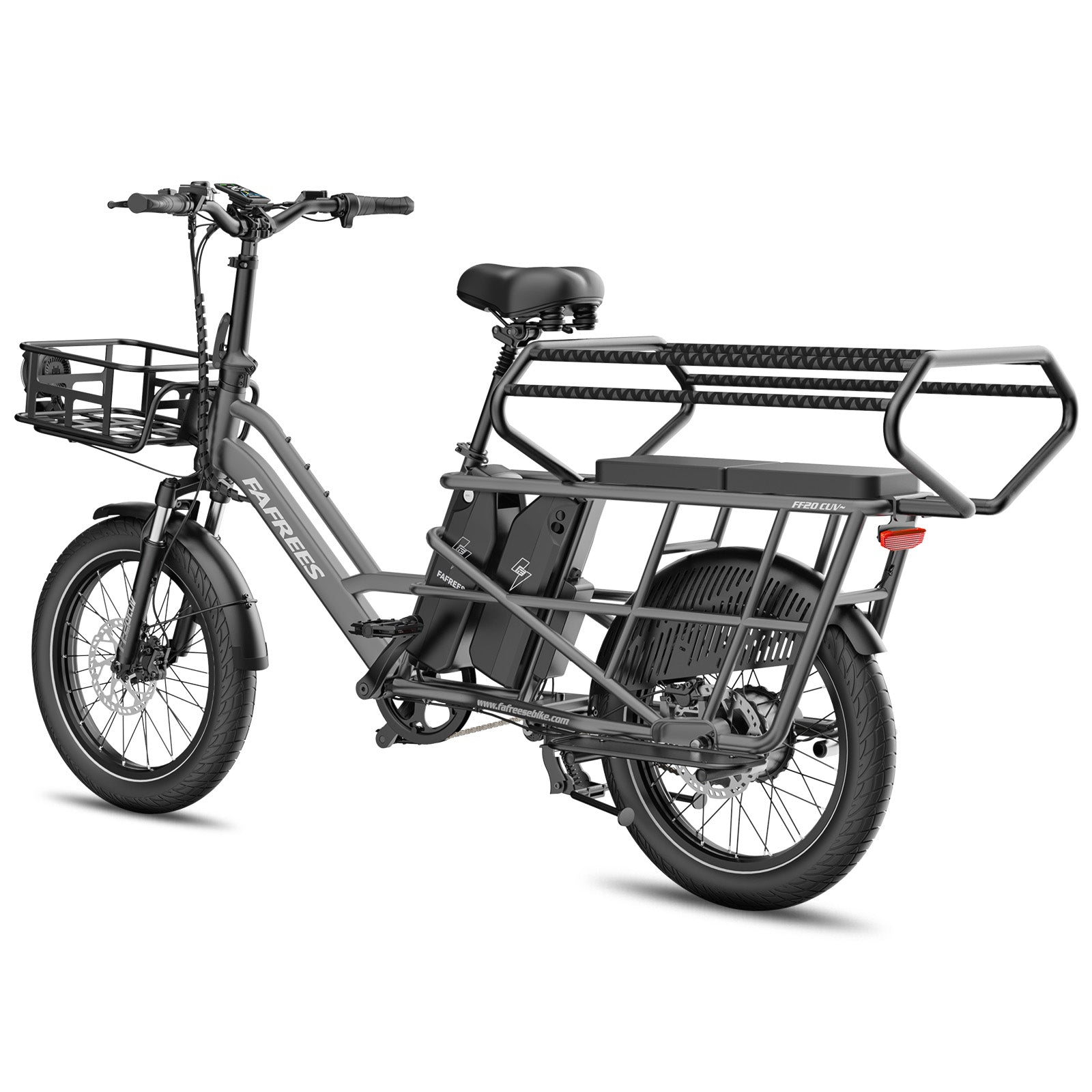

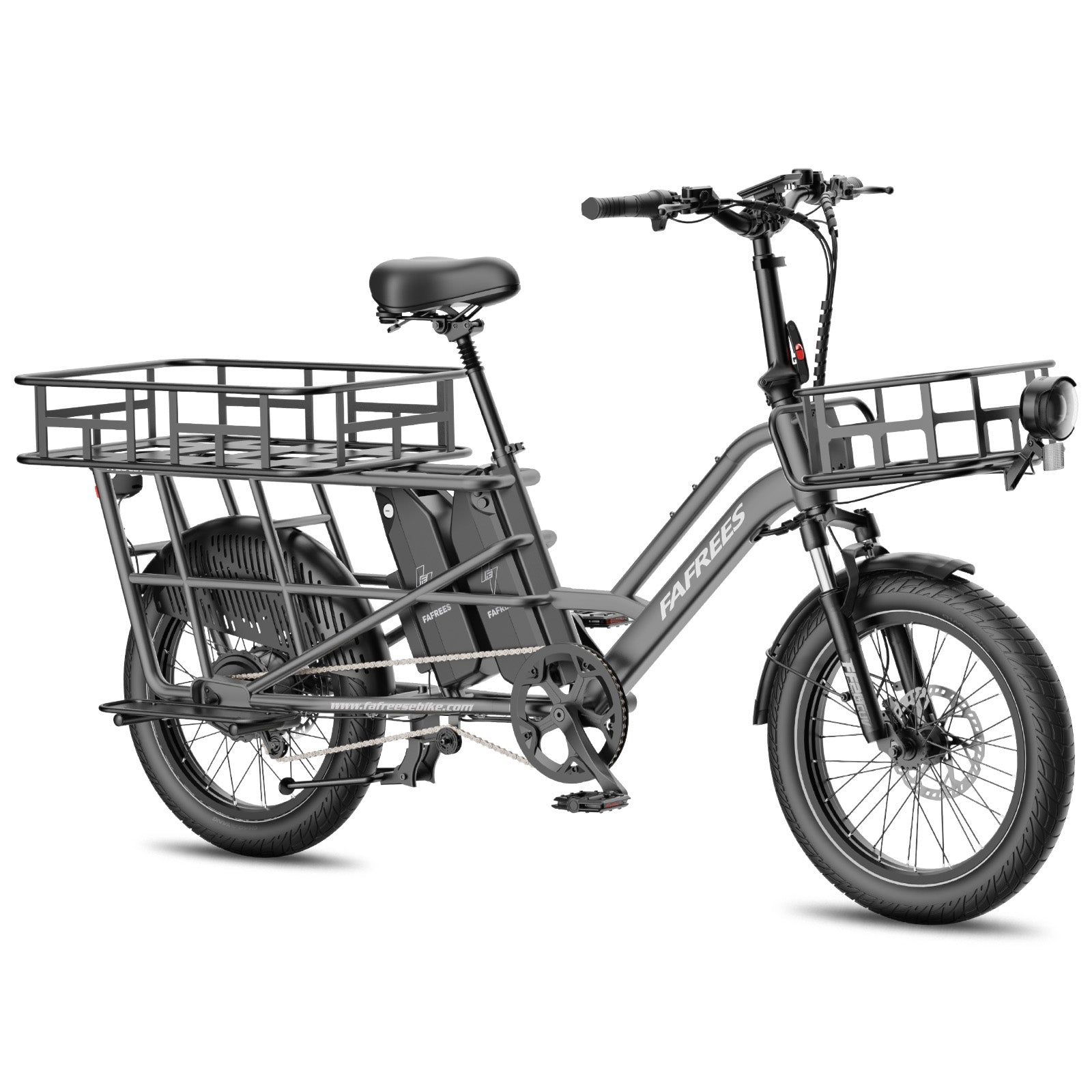

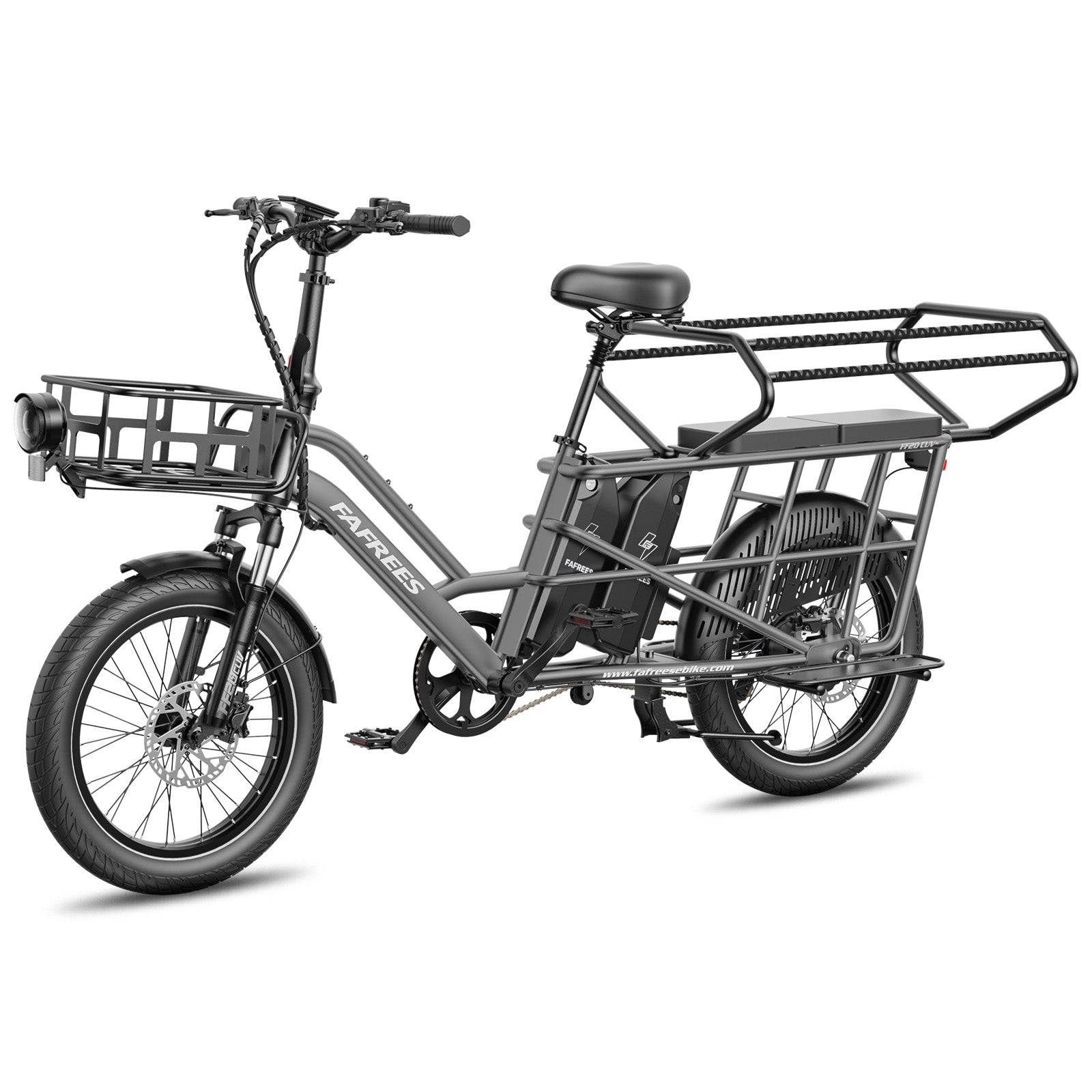

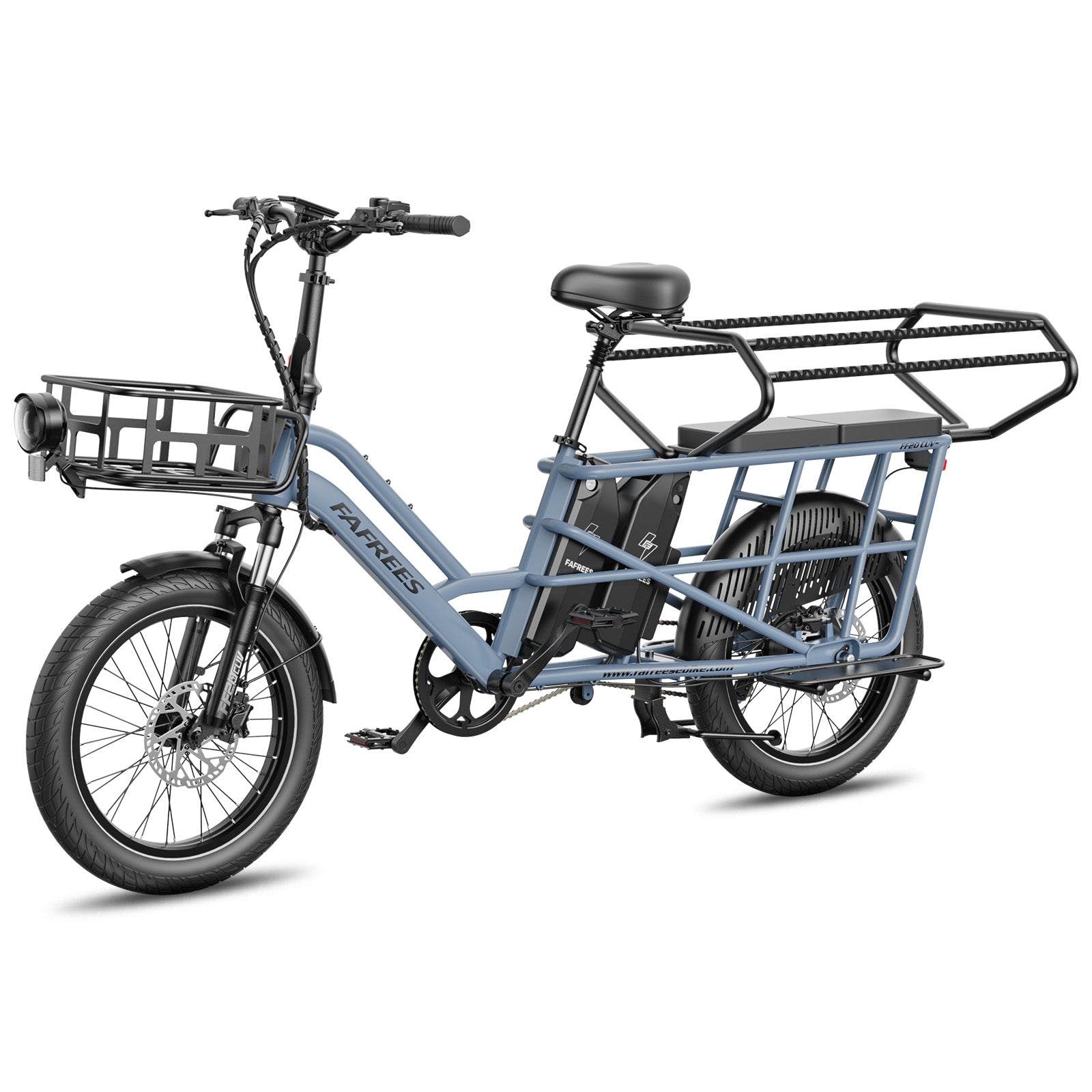

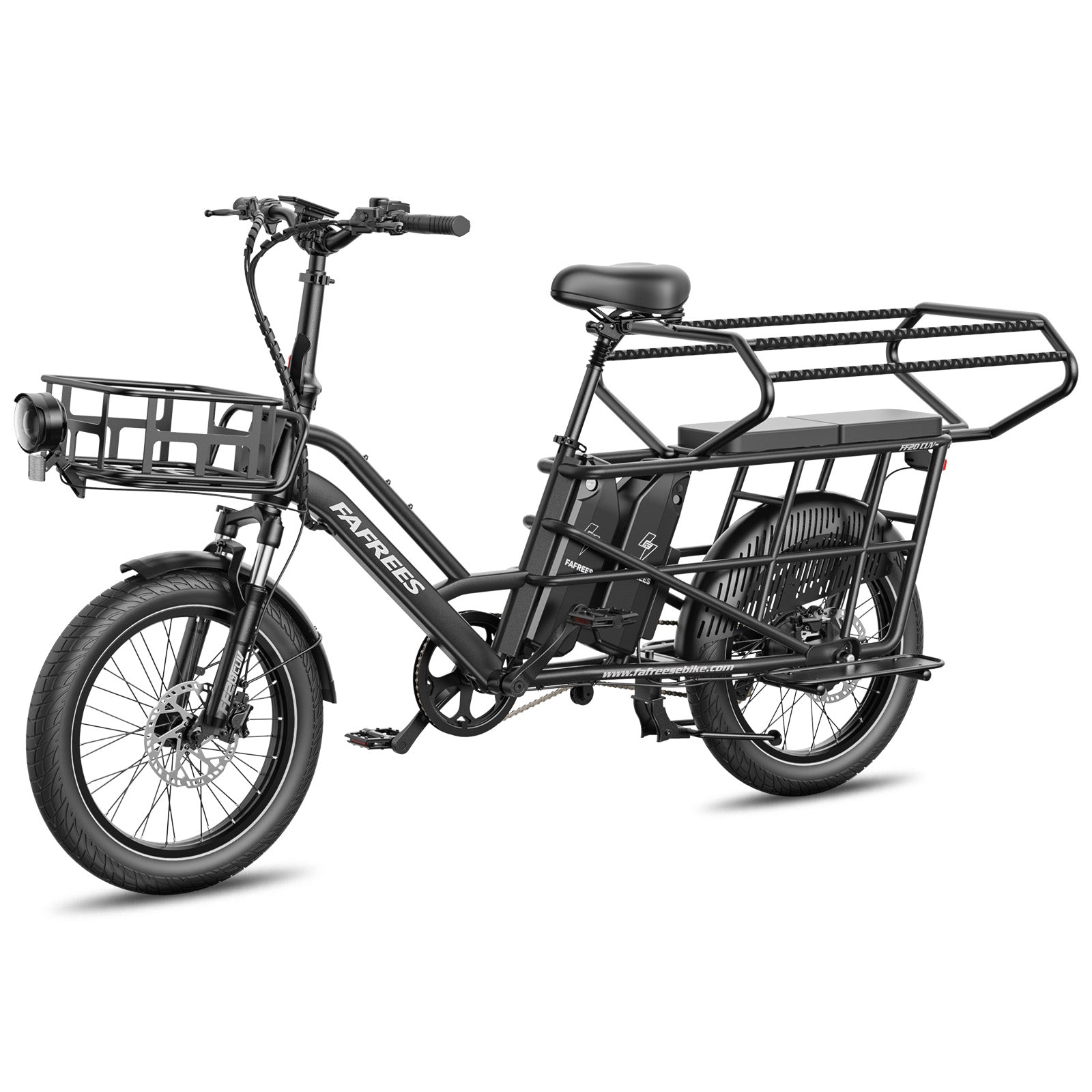

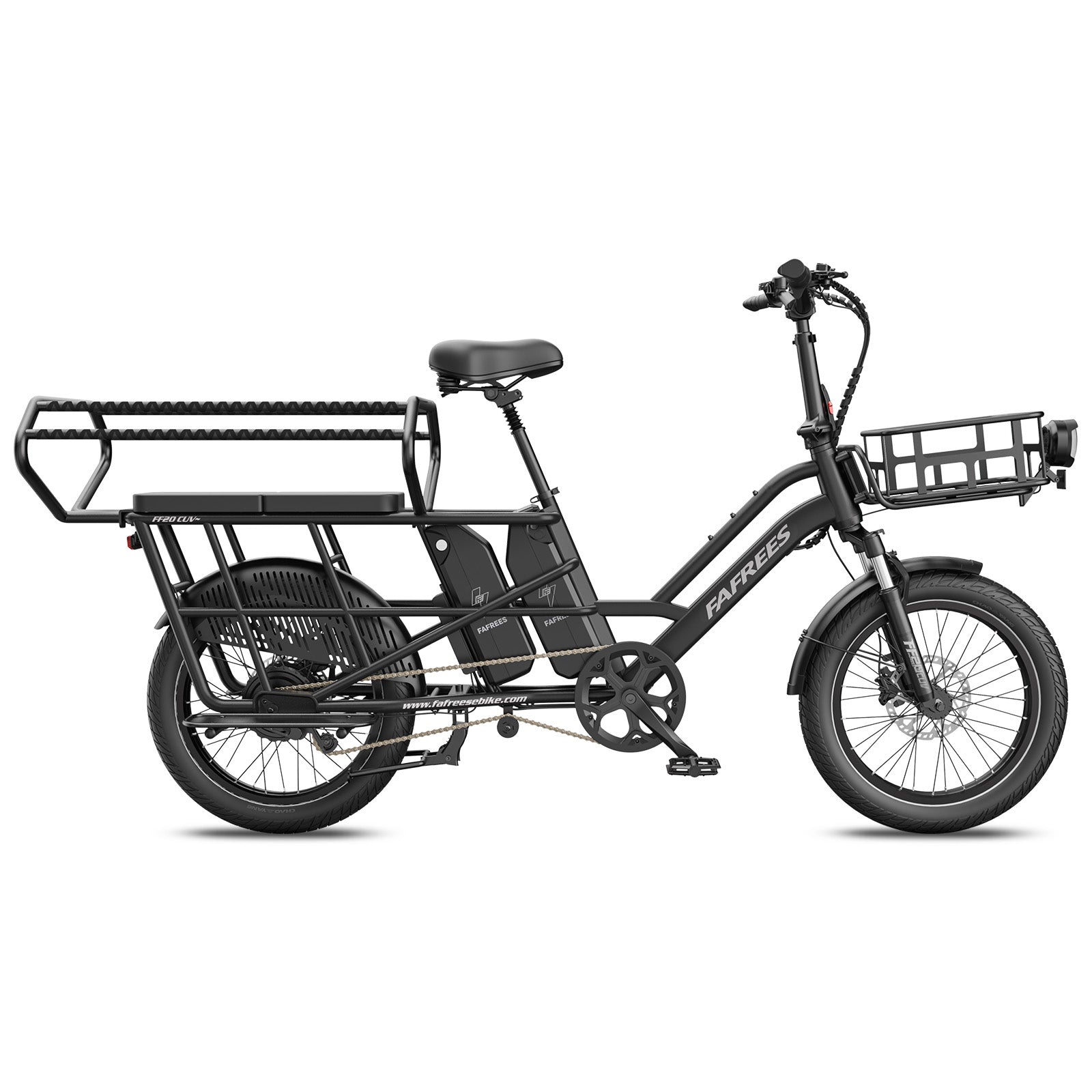

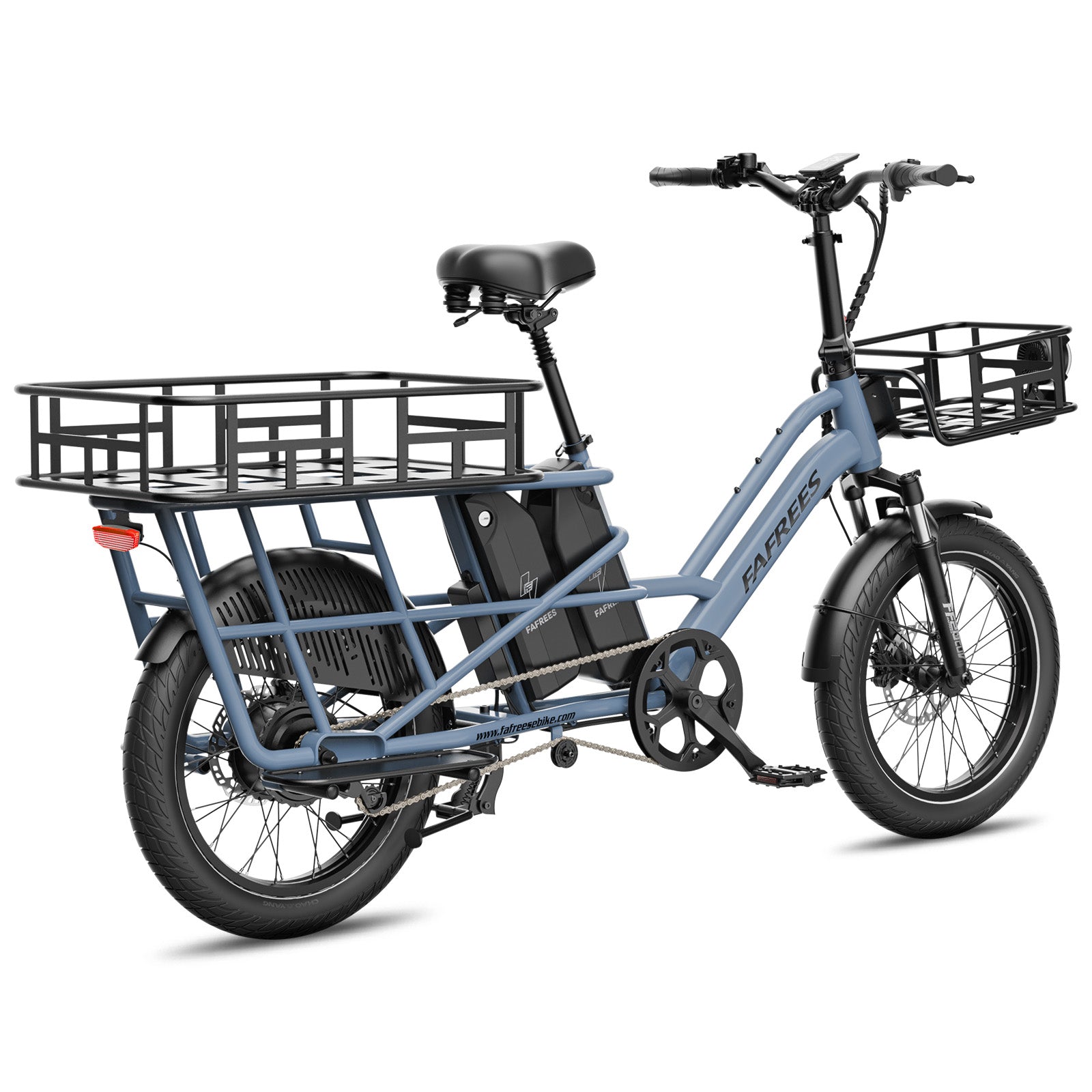

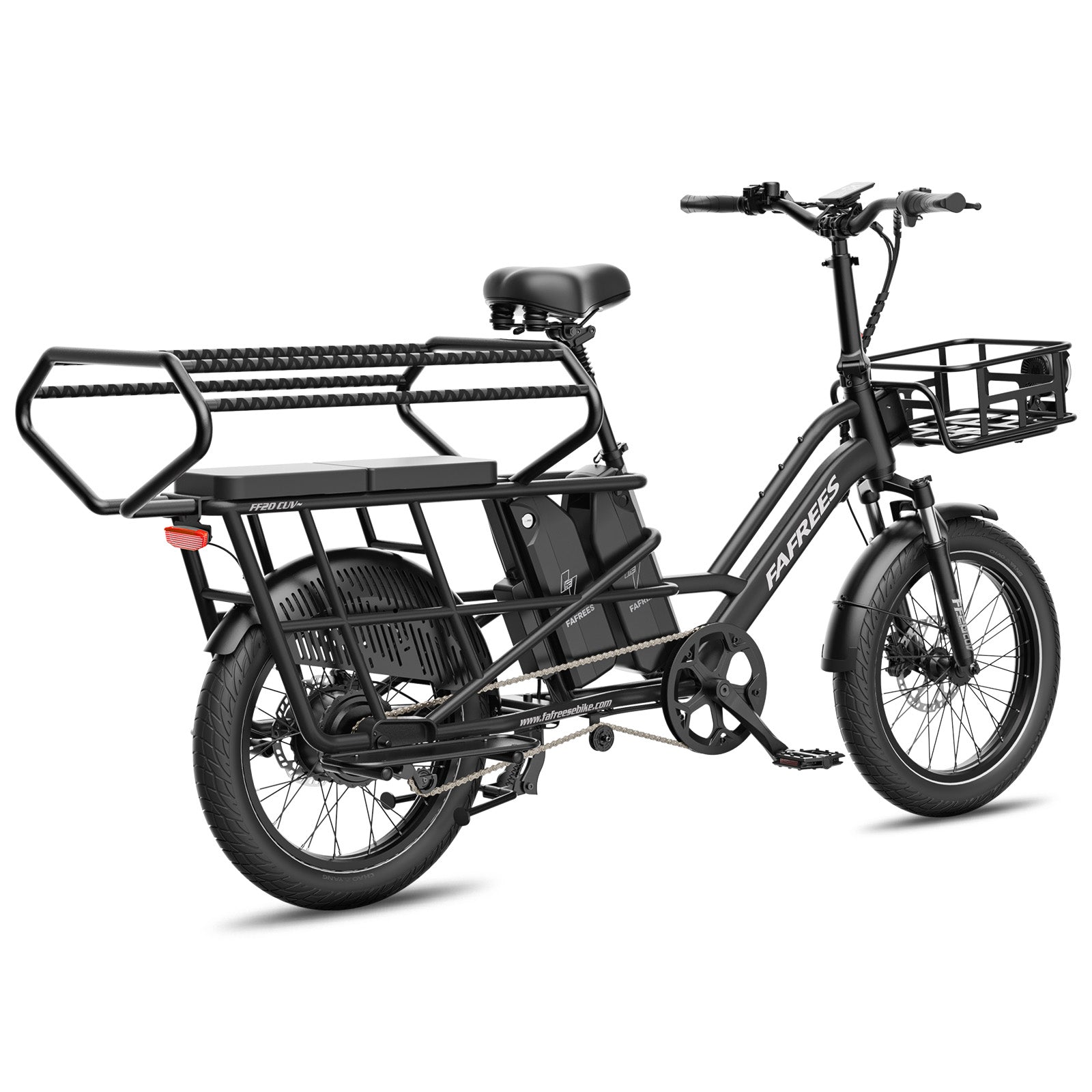

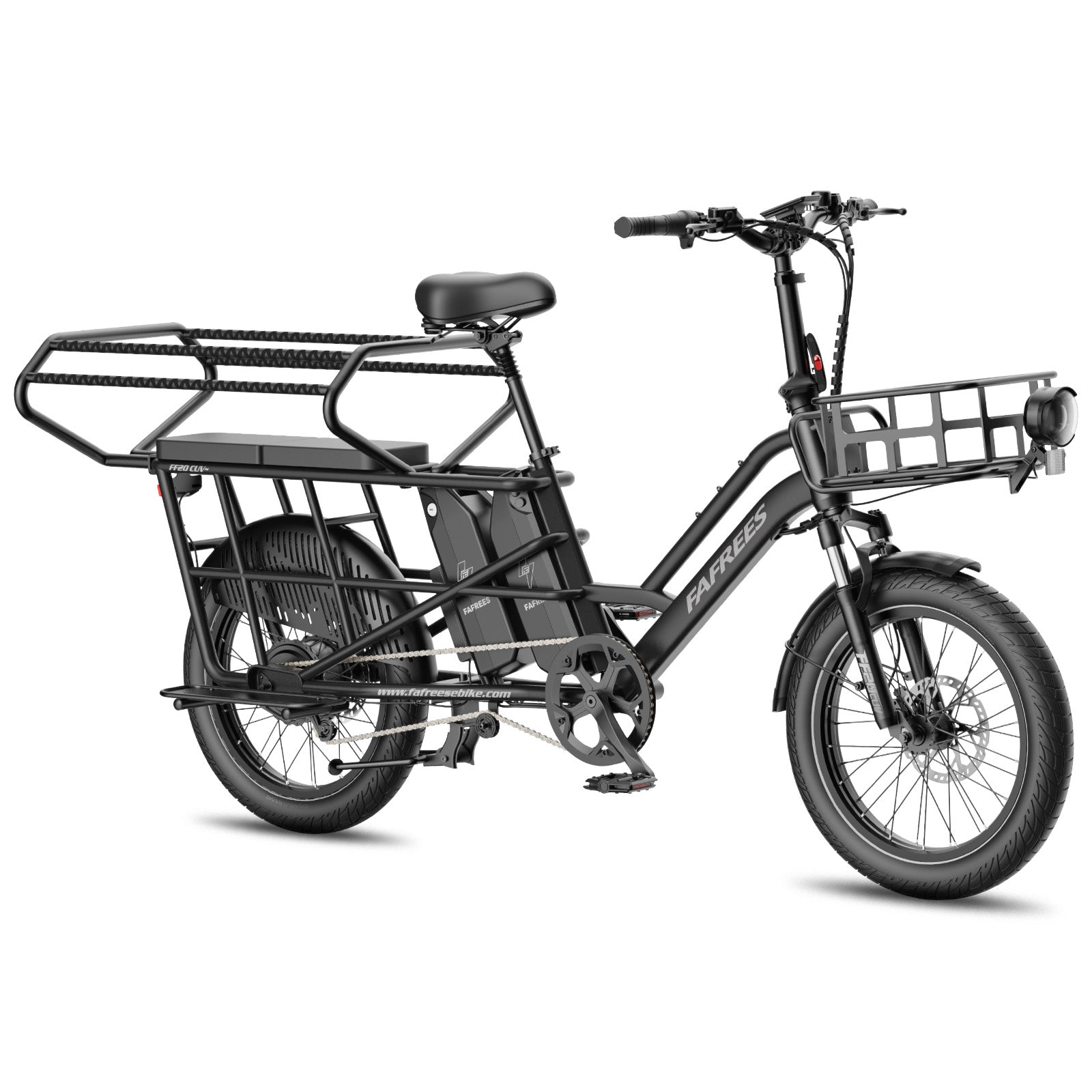

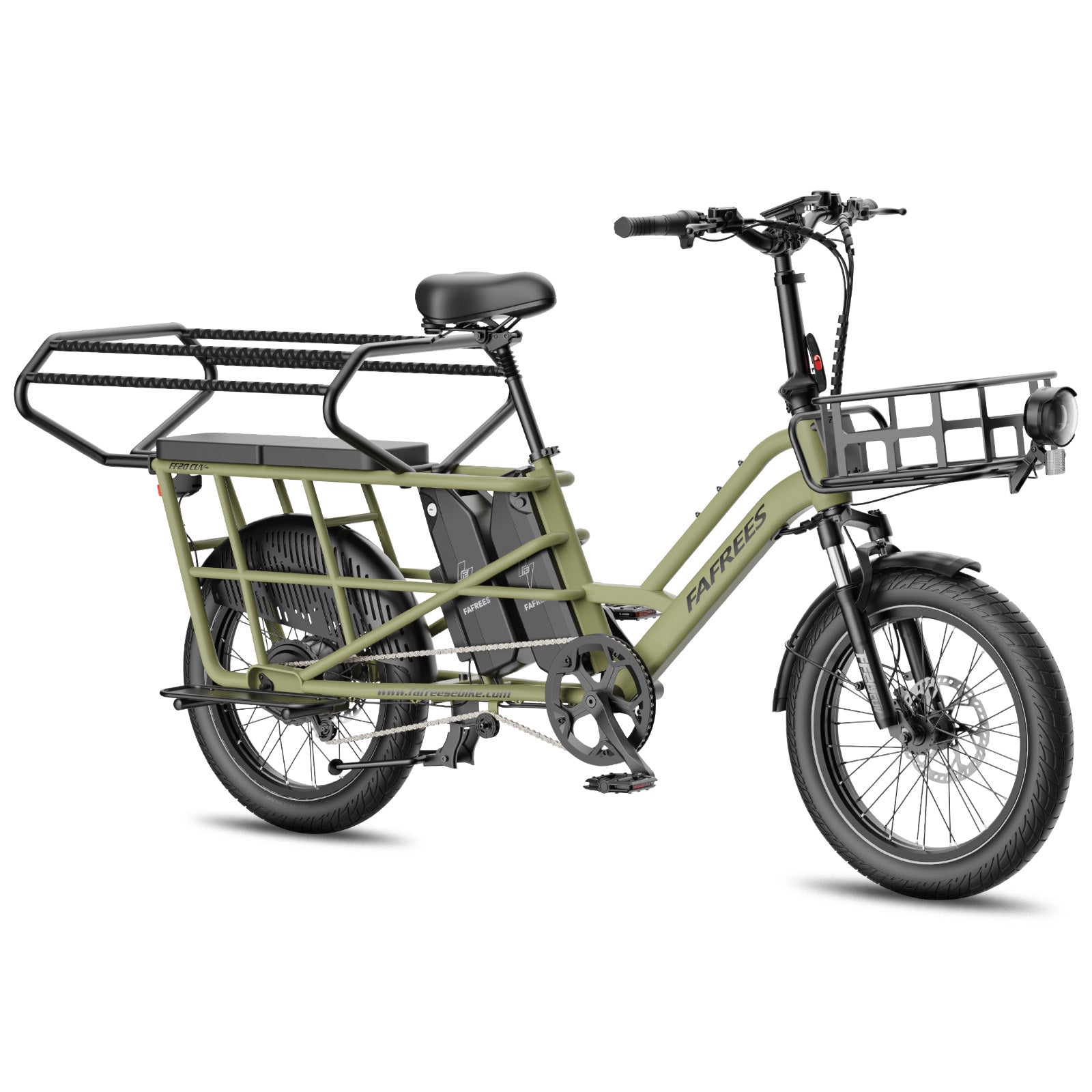

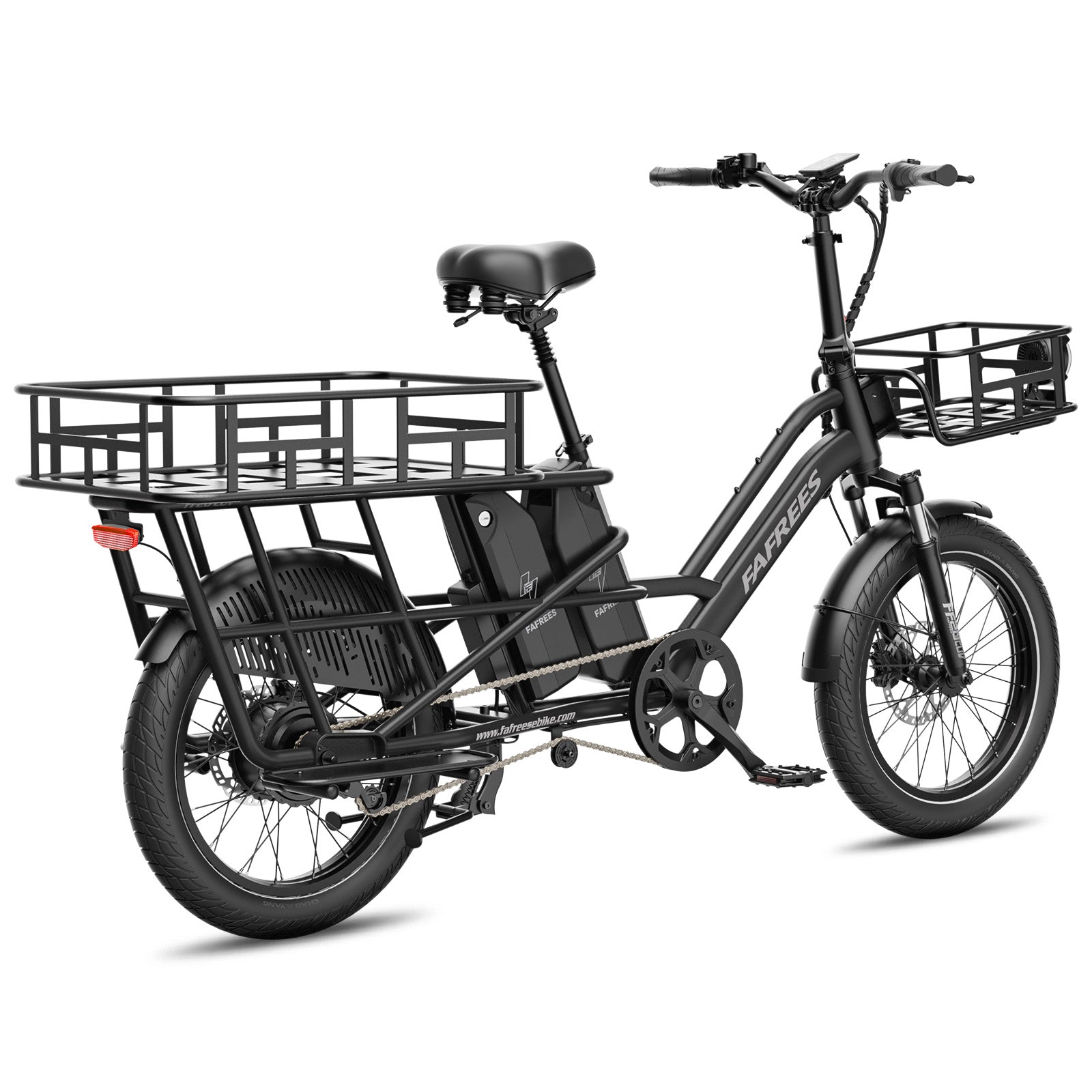

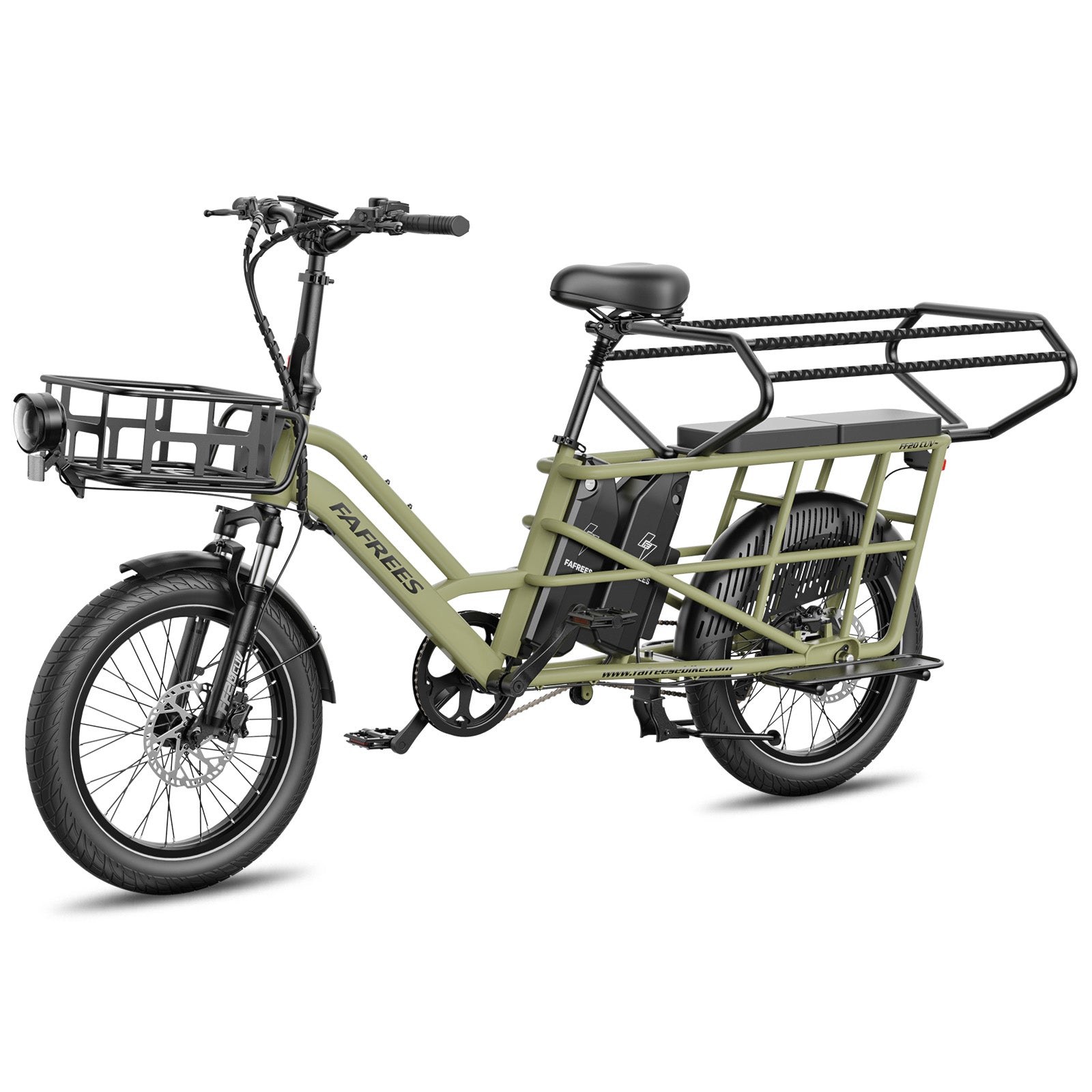

Fafrees FF20 CUV — Modular Longtail E-Cargo Bike
Please Note : The front basket is not included in the package. It can be purchased separately if needed.

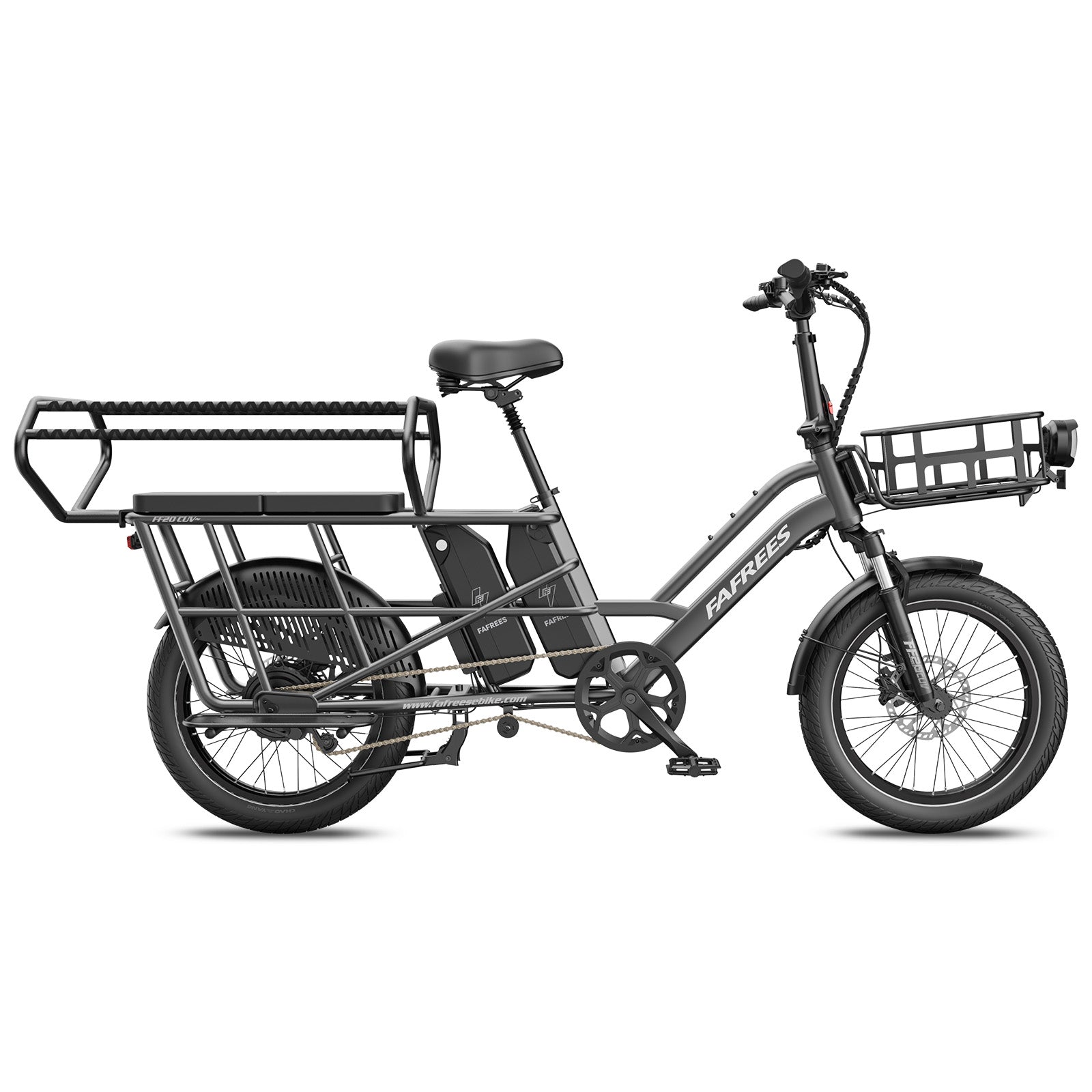

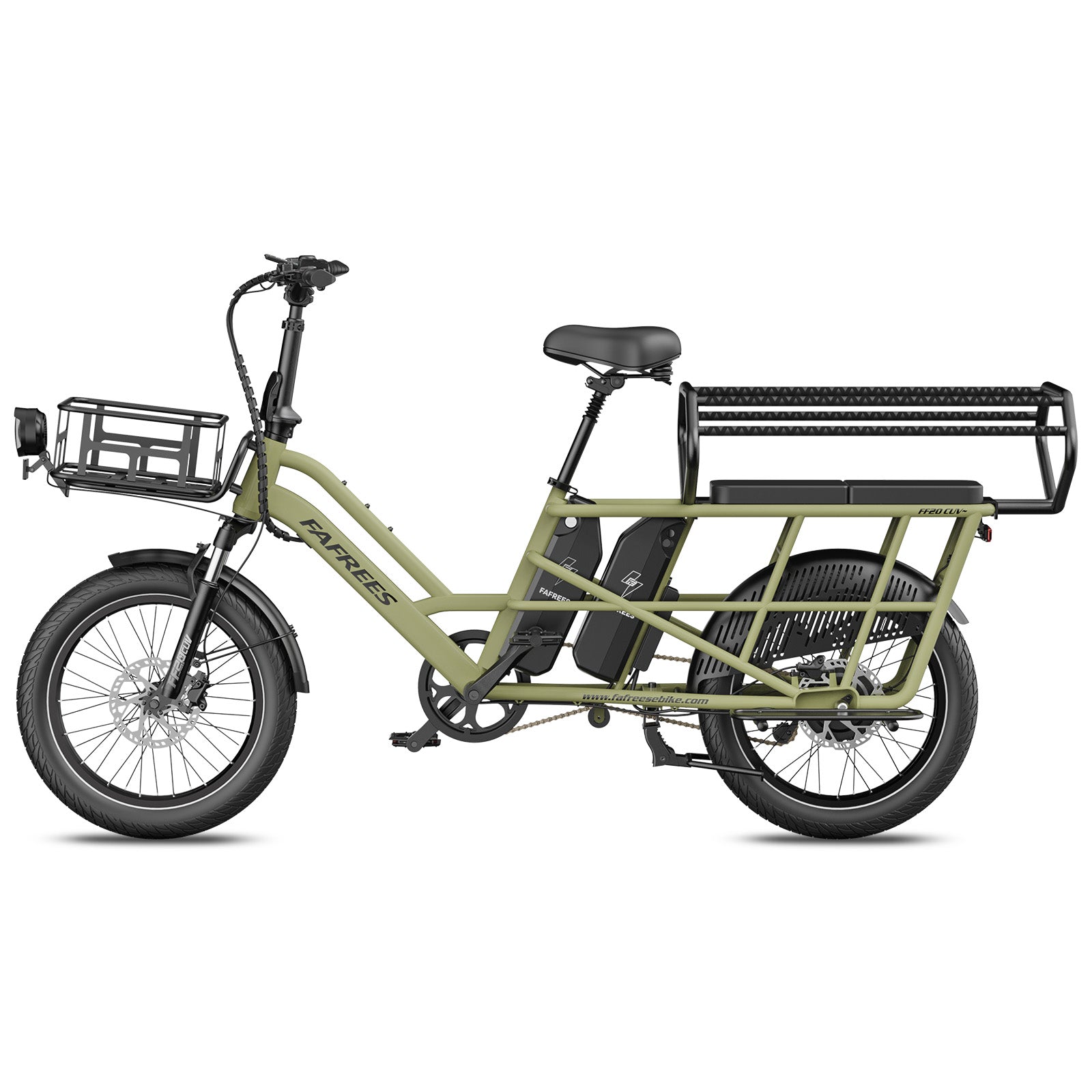

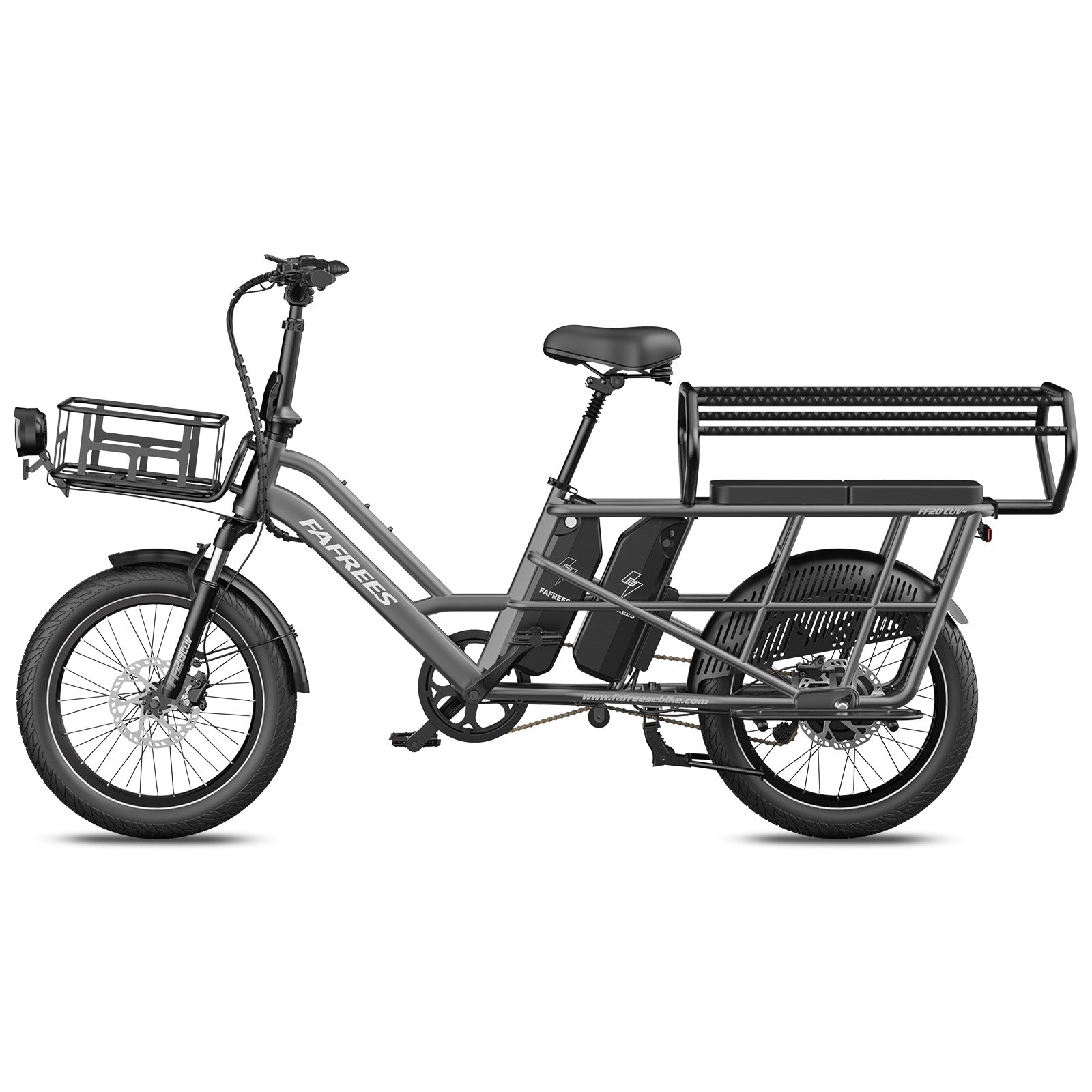

The Fafrees FF20 CUV is a premium longtail e-cargo bike designed to simplify your daily life and heavy hauling.
Whether heading out for a family ride or running errands, this versatile longtail e bike adapts to your urban lifestyle.
Its modular frame allows you to switch between carrying children and transporting gear with professional ease.
Versatile Cargobike Longtail Design

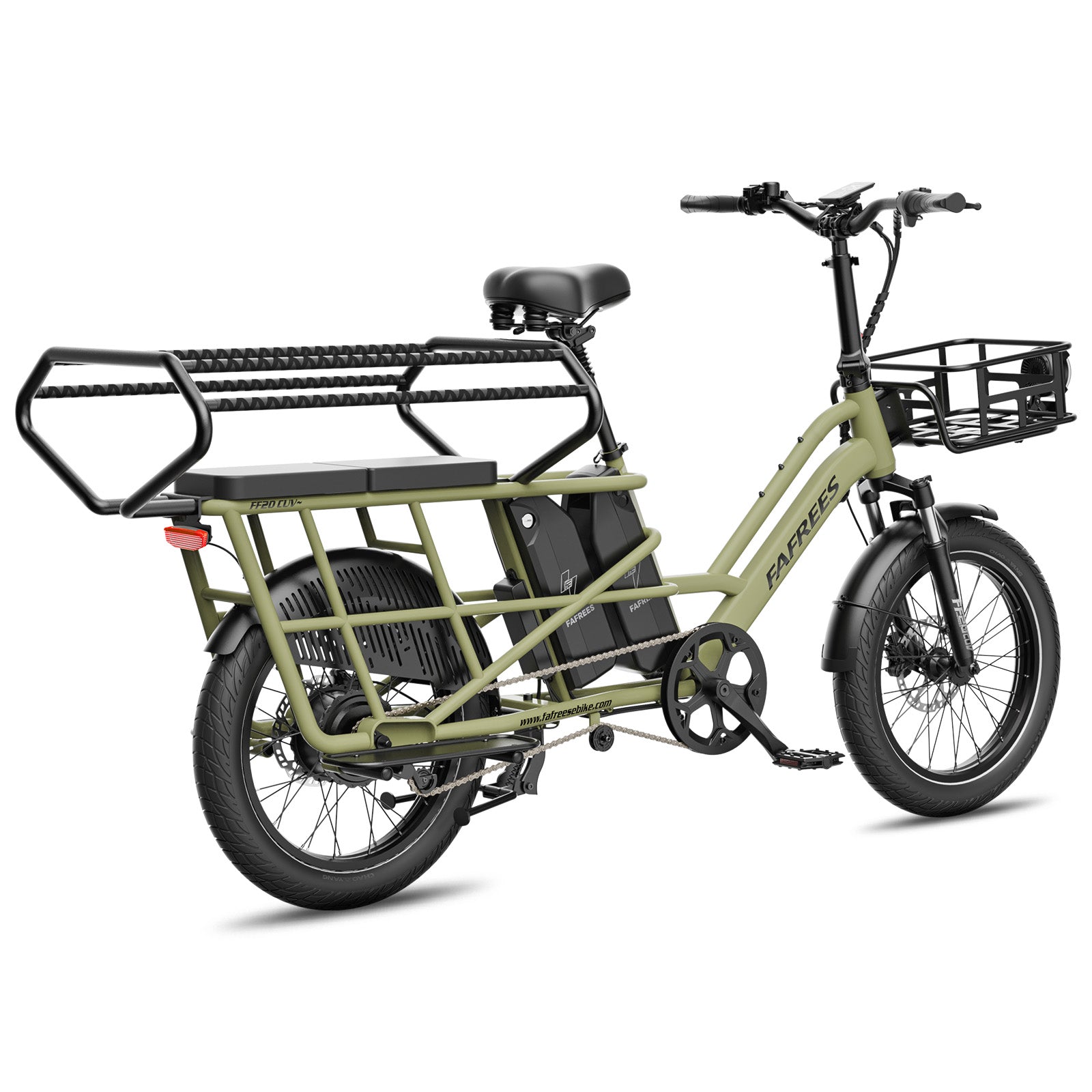

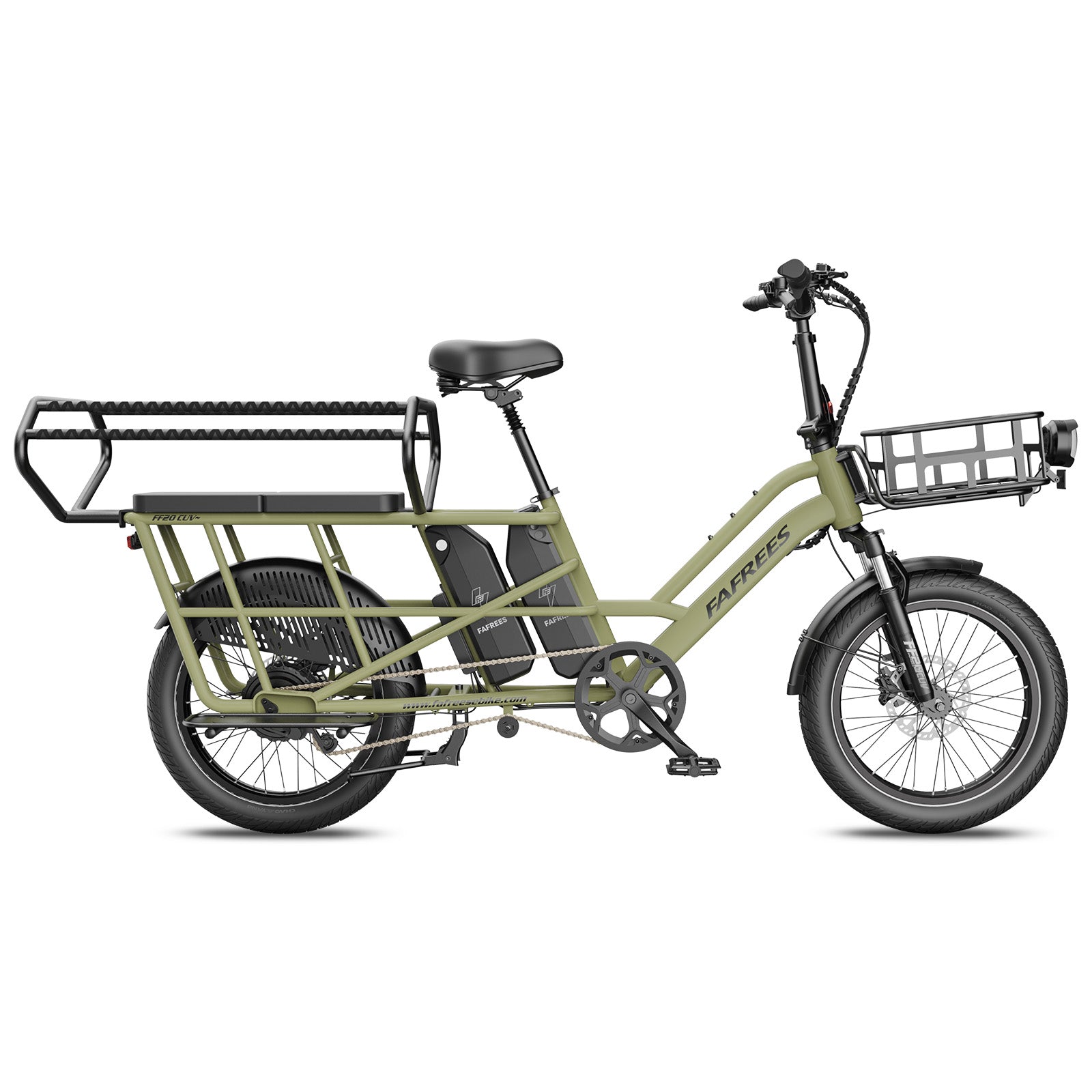

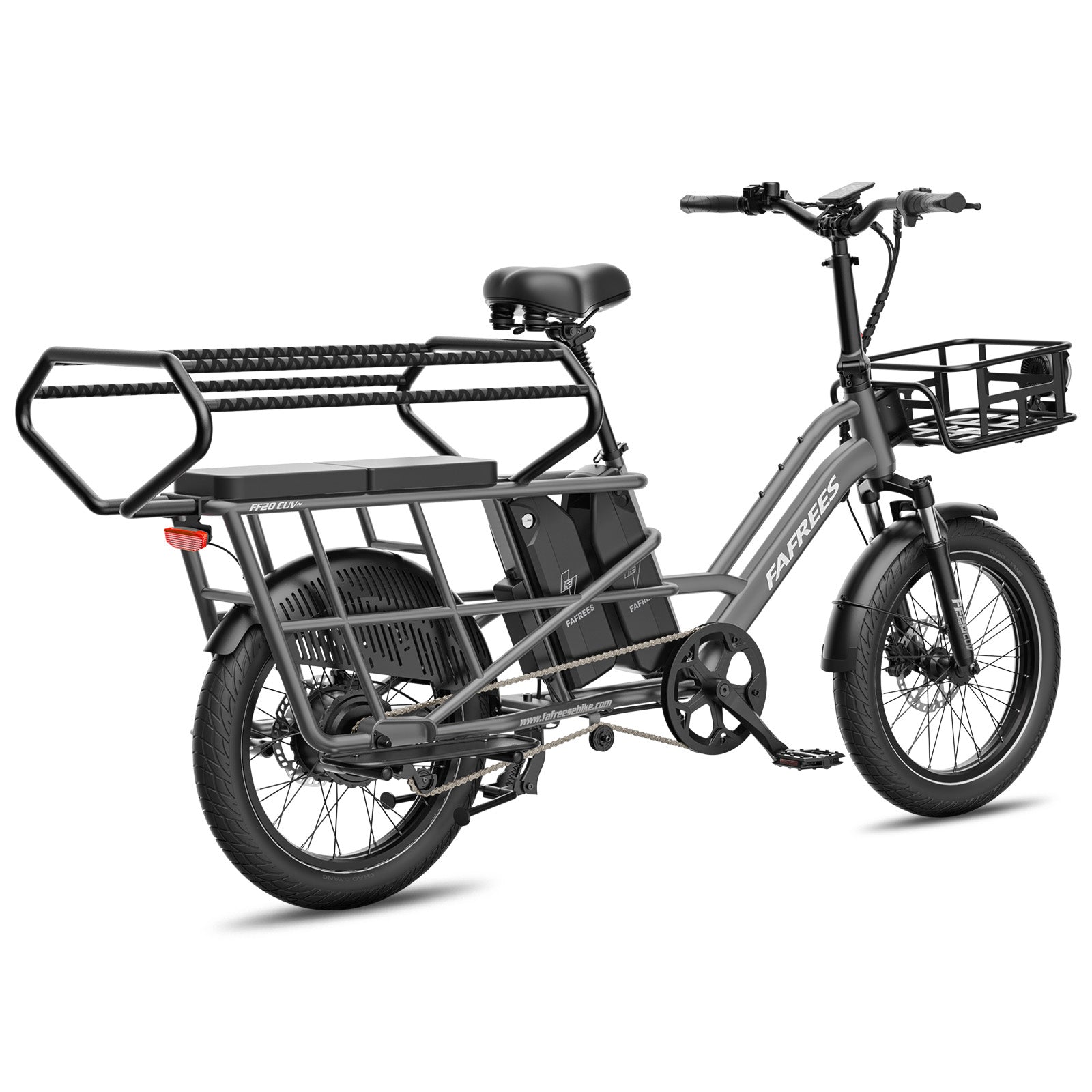

With a family-first philosophy, this e-bike safely accommodates two children and all your daily essentials.
Customise your ride with a front basket or rear child seat to suit school drop-offs or weekend grocery runs.
This flexibility ensures one versatile vehicle serves multiple purposes without compromising performance.
Built for utility, the FF20 CUV boasts a total load capacity of up to 200 kg for heavy-duty tasks.
The setup supports 150 kg for the rider, 20 kg in front, and 100 kg on the rear rack.
Handle groceries or work supplies easily (note: the rear cargo basket is sold separately).
Dual-Battery Power and Range

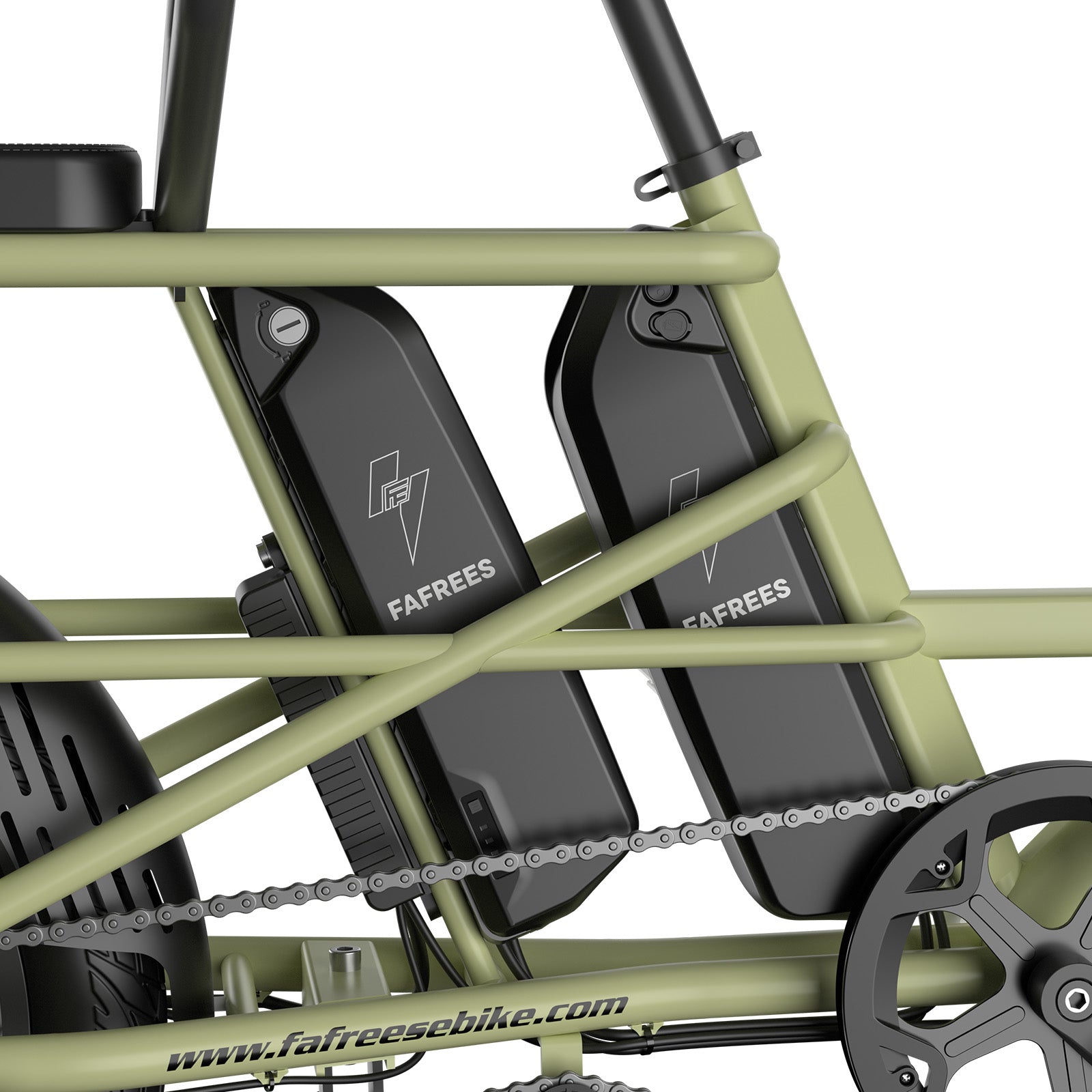

The dual-battery system delivers reliability using two 48V batteries (24Ah or 30Ah) with a built-in balancer.
Expect an impressive range of 100–140 km or 120–170 km depending on your specific configuration.
Removable batteries charge fully in 4.5 to 5.5 hours, making it convenient for home or office use.

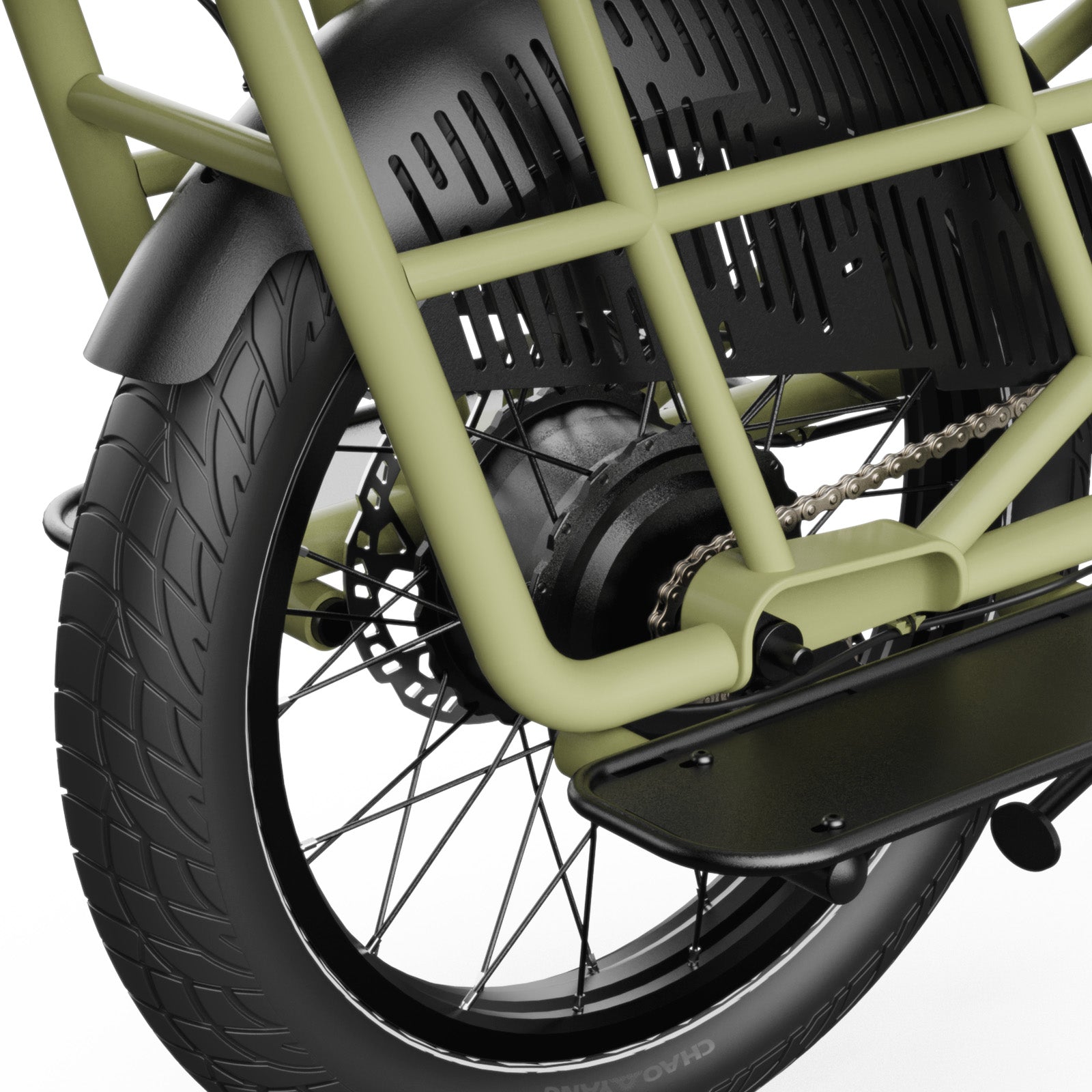

A 250W rear hub motor and a responsive torque sensor provide smooth, natural acceleration on every trip.
Generating up to 75 Nm of torque, this modular frame masters steep hills and quick starts.
The motor complies with EU regulations, ensuring your ride is suitable for road use.
Enhanced Comfort and Safety

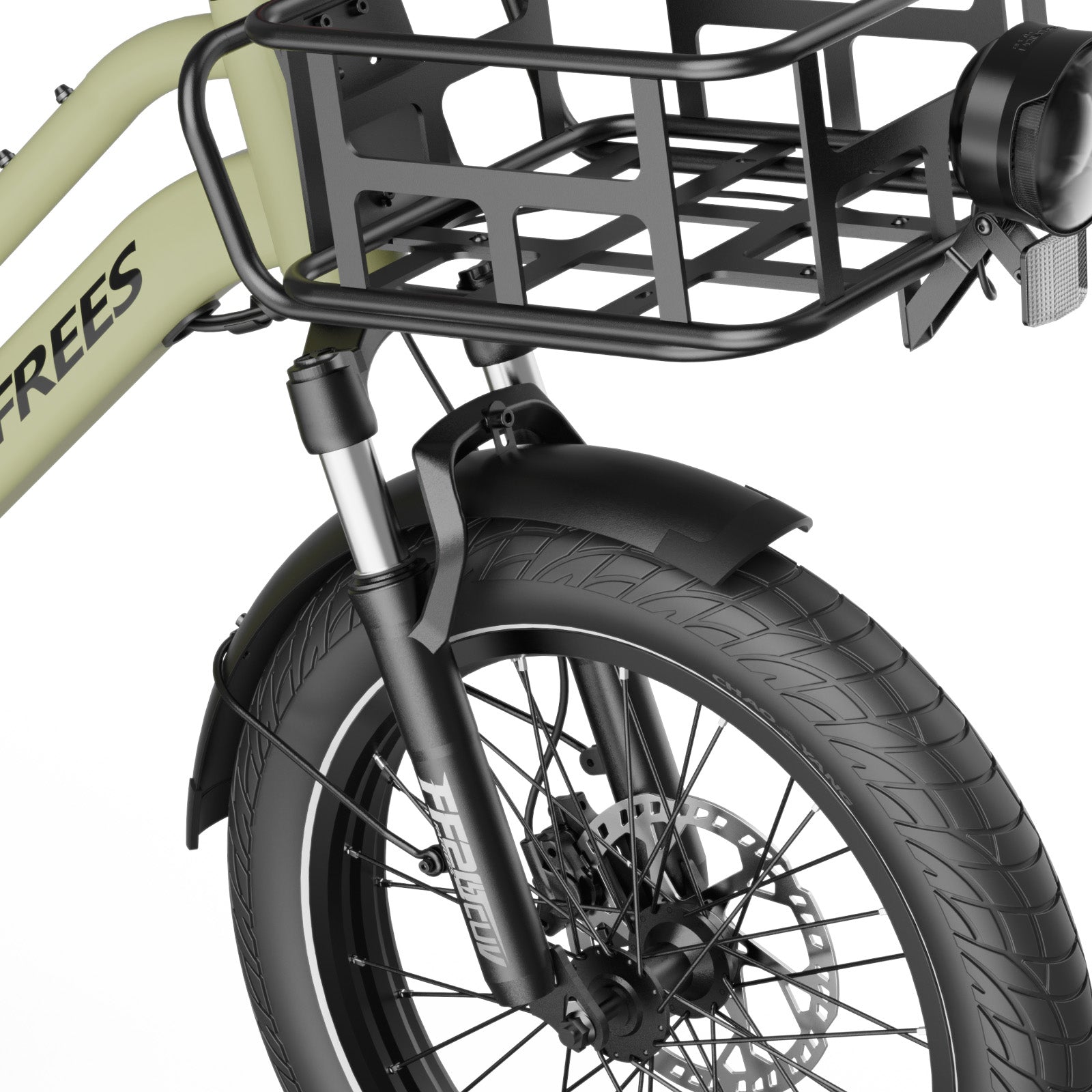

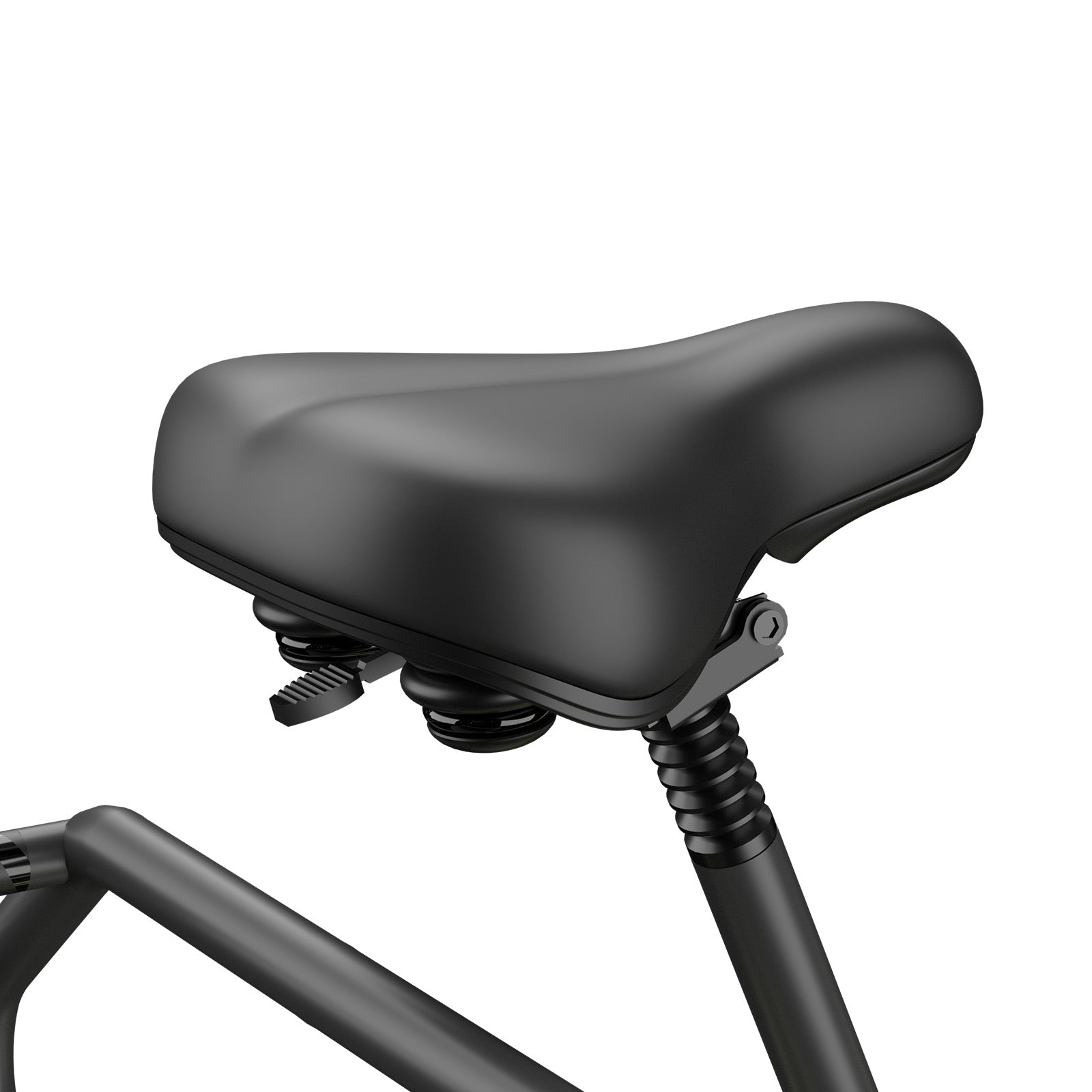

Dual suspension features a front fork and suspension seatpost to absorb shocks on uneven city roads.

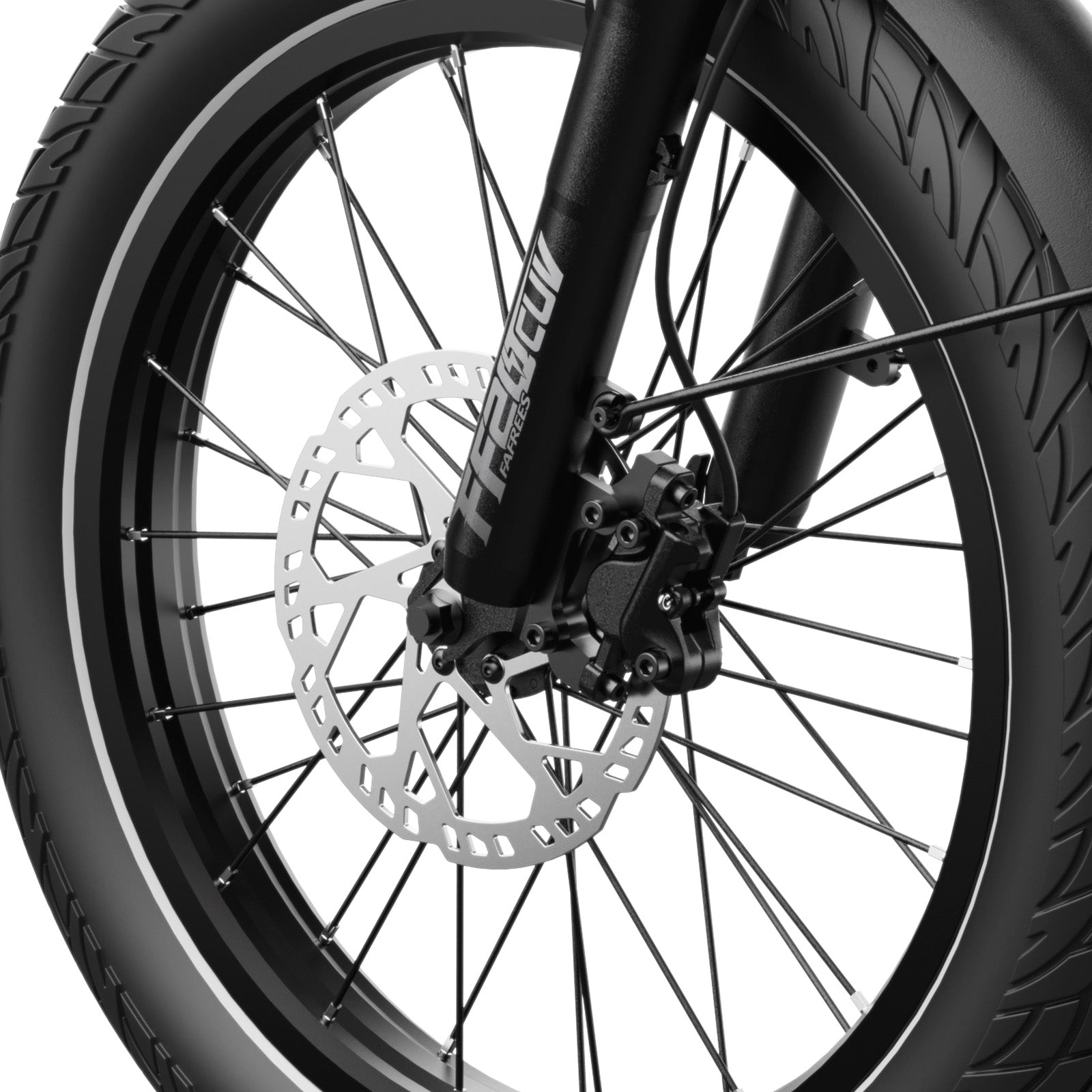

Hydraulic disc brakes provide reliable stopping power, while 20" × 3.0" fat tires ensure excellent traction.
Ride confidently over gravel, sand, or wet pavement with the stability of a dedicated cargo frame.

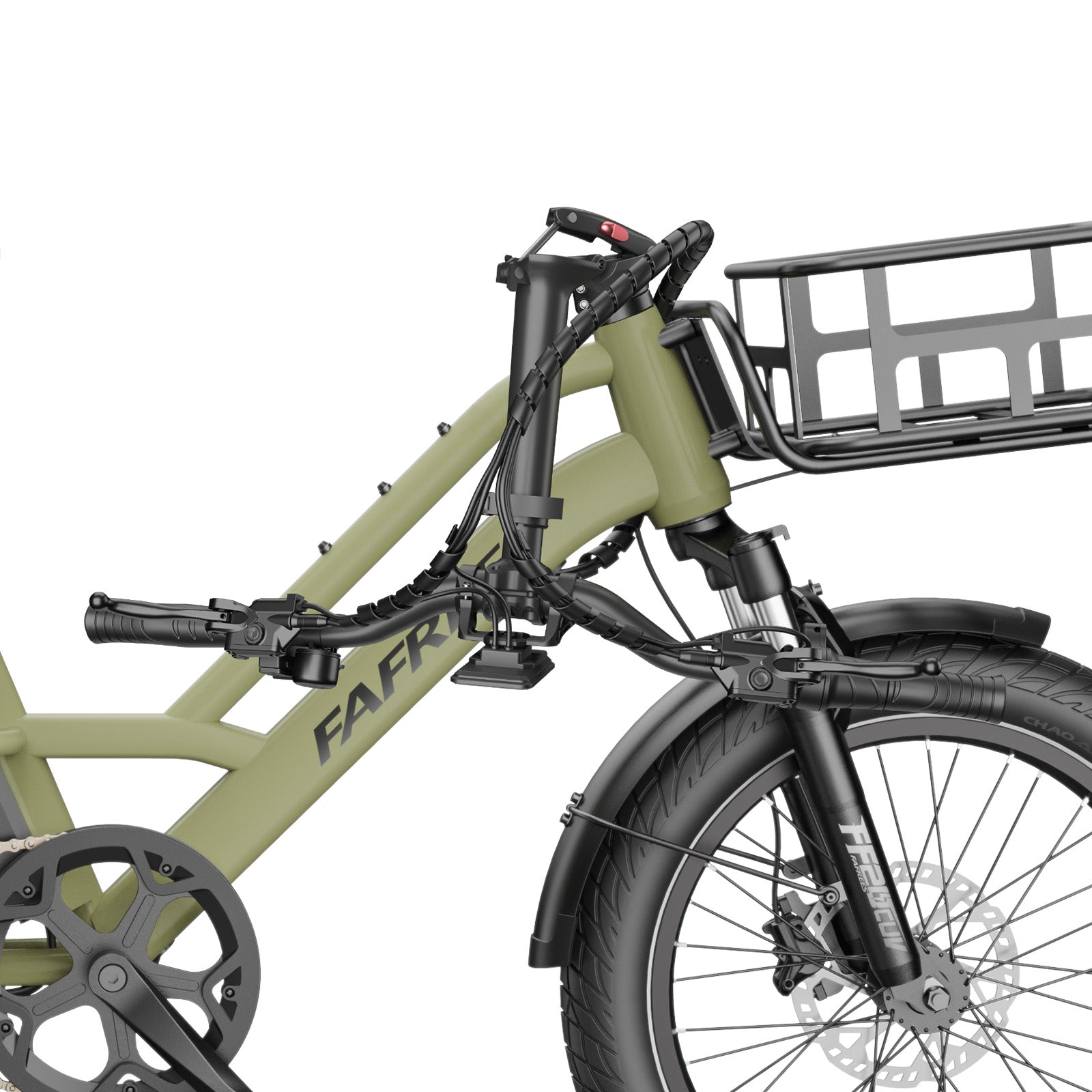

The rust-resistant aluminum frame includes folding handlebars for easier storage in compact urban spaces.

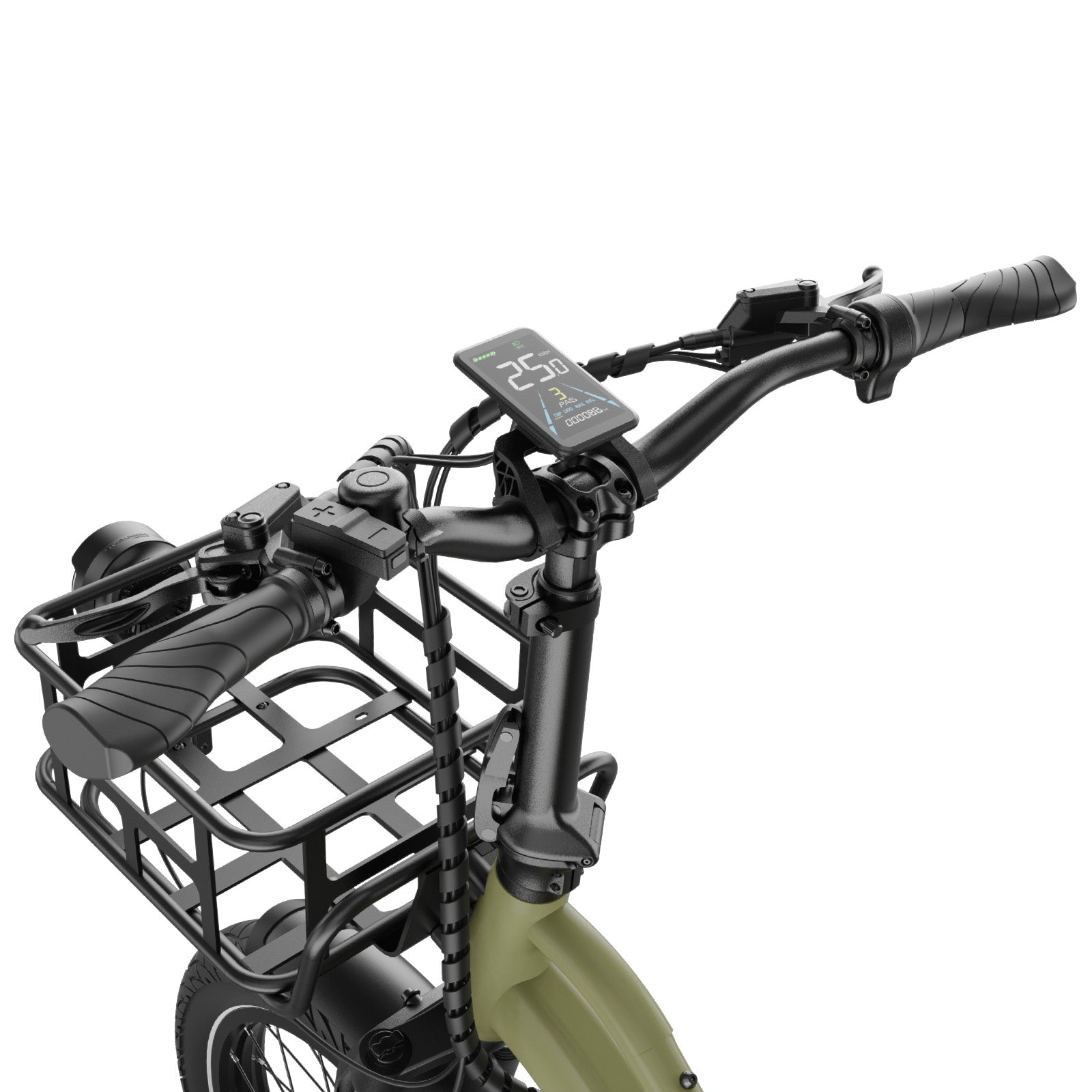

A bright LCD display provides ride data and allows quick switching between pedal-assist levels.
![]()

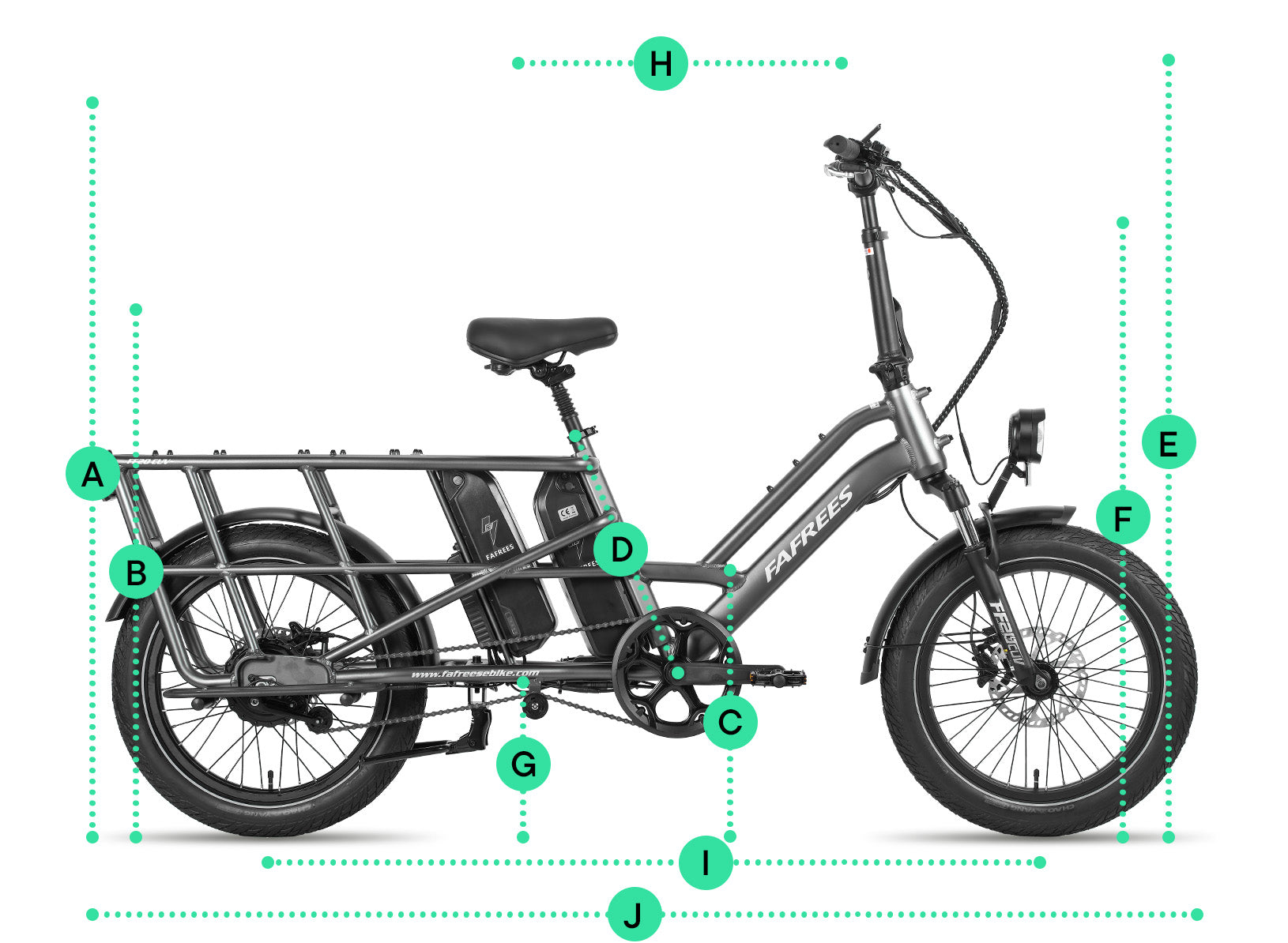

Geometry
| A |
Max. Seat Height |
102 CM |
| B |
Min. Seat Height |
85 CM |
| C |
Standover Height |
48 CM |
| D |
Frame Size |
45 CM |
| E |
Max. Handlebar Height |
125 CM |
| F |
Min. Handlebar Height |
114 CM |
| G |
Bottom Bracket Height |
27 CM |
| H |
Top Tube Length |
60 CM |
| I |
Wheelbase Length |
135 CM |
| J |
Total Length |
207 CM |
| k |
Bike Width |
67 CM |
| l |
Folded Size |
207 × 53.5 × 91 CM |
Specification
| Brand |
FAFREES |
| Model |
FF20 CUV |
| Frame |
Aluminum Alloy |
| Tire Type |
Air Tire |
| Default Max Speed |
25 km/h |
| Adjustable Max Speed |
— |
| Assisted Range |
100–140 km / 120–170 km |
| Max Climbing Ability |
20° |
| Battery Type |
18650 Lithium-ion Battery |
| Rated Voltage |
48V |
| Input Voltage |
54.6V |
| Capacity |
12Ah (576Wh ×2) / 15Ah (720Wh ×2) |
| Undervoltage Protection |
38V |
| Overcurrent Protection |
20A |
| Motor Rated Power |
250W |
| Peak Power |
750W |
| Position |
Rear Drive |
| Max Torque |
75 Nm |
| Charger Input Voltage |
110–240V |
| Output Voltage |
54.6V |
| Rated Current |
3A |
| Charging Time |
4.5h ×2 / 5.5h ×2 |
| Front Fork |
Shock Fork |
| Fork Travel |
60 mm |
| Rear Shock Type |
Seat Shock Tube |
| Rear Travel |
15 mm |
| Display Type |
LCD |
| Walk Assist (6 km/h) |
No |
| Cruise Control |
No |
| App Control |
No |
| PAS Levels |
0–3 |
| Sensor |
Torque Sensor |
| Transmission |
N/A |
| Brakes |
Hydraulic Disc Brakes |
| Folding |
Folding Handlebar |
| Lights |
Yes |
| Headlight |
Yes |
| Taillight |
Yes |
| Operating Temp |
-20°C to 40°C |
| Waterproof Rating |
IPX5 |
| Net Weight |
39 kg / 40 kg |
| Package Weight |
53.2 kg / 54.7 kg |
| Battery Weight |
3.1 + 3.1 kg / 3.6 + 3.6 kg |
| Load Capacity |
200 kg |
| Unfolded Size |
207 × 67 × 120 cm |
| Folded Size |
207 × 53.5 × 91 cm |
| Handlebar Height (Adjustable) |
114 – 125 cm |
| Seat Height (Adjustable) |
85 – 102 cm |
| Package Size |
164 × 29 × 77 cm |
| Tire Size |
20" × 3.0 |

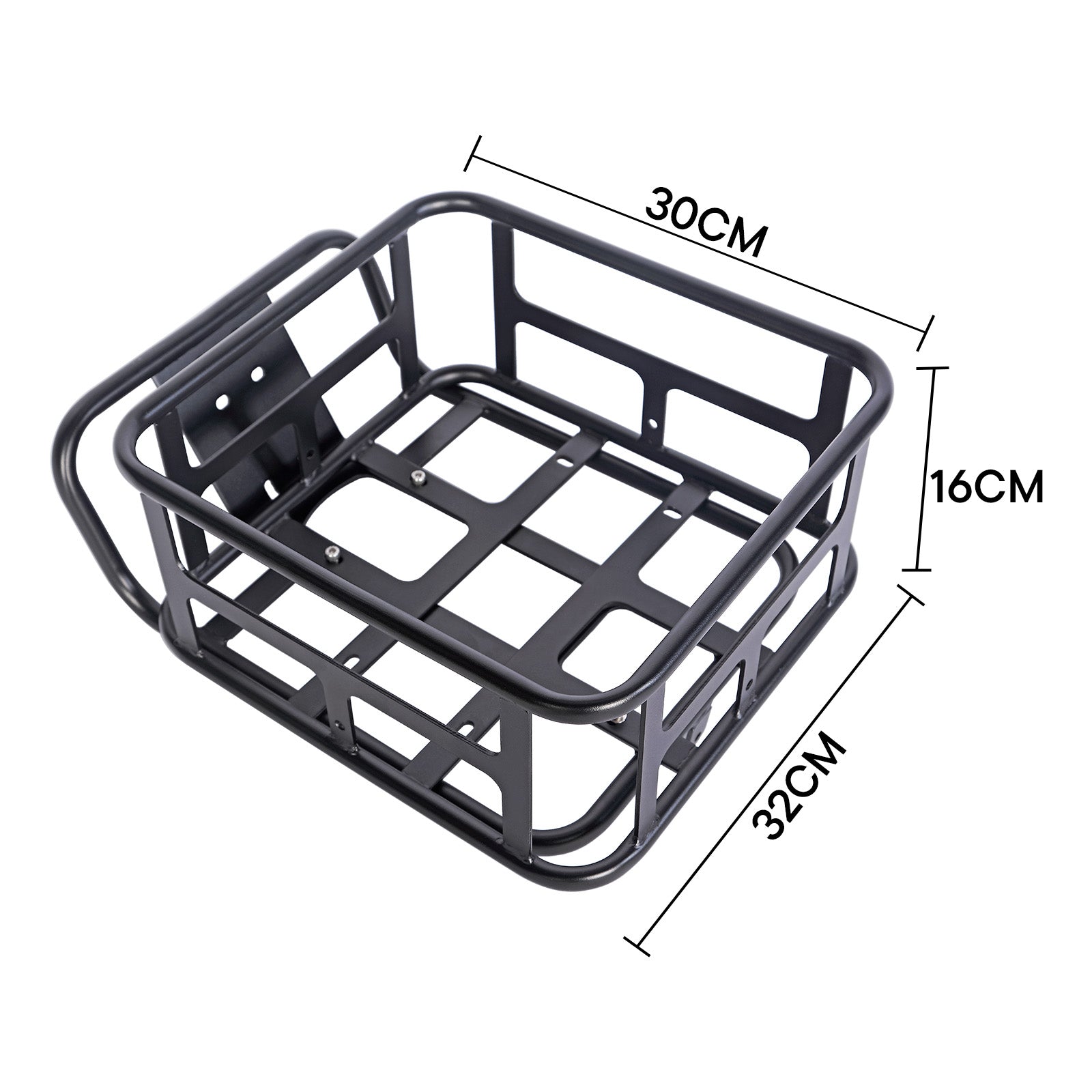

| Front Basket Size (L×W×H) |
32 × 30 × 16 cm |

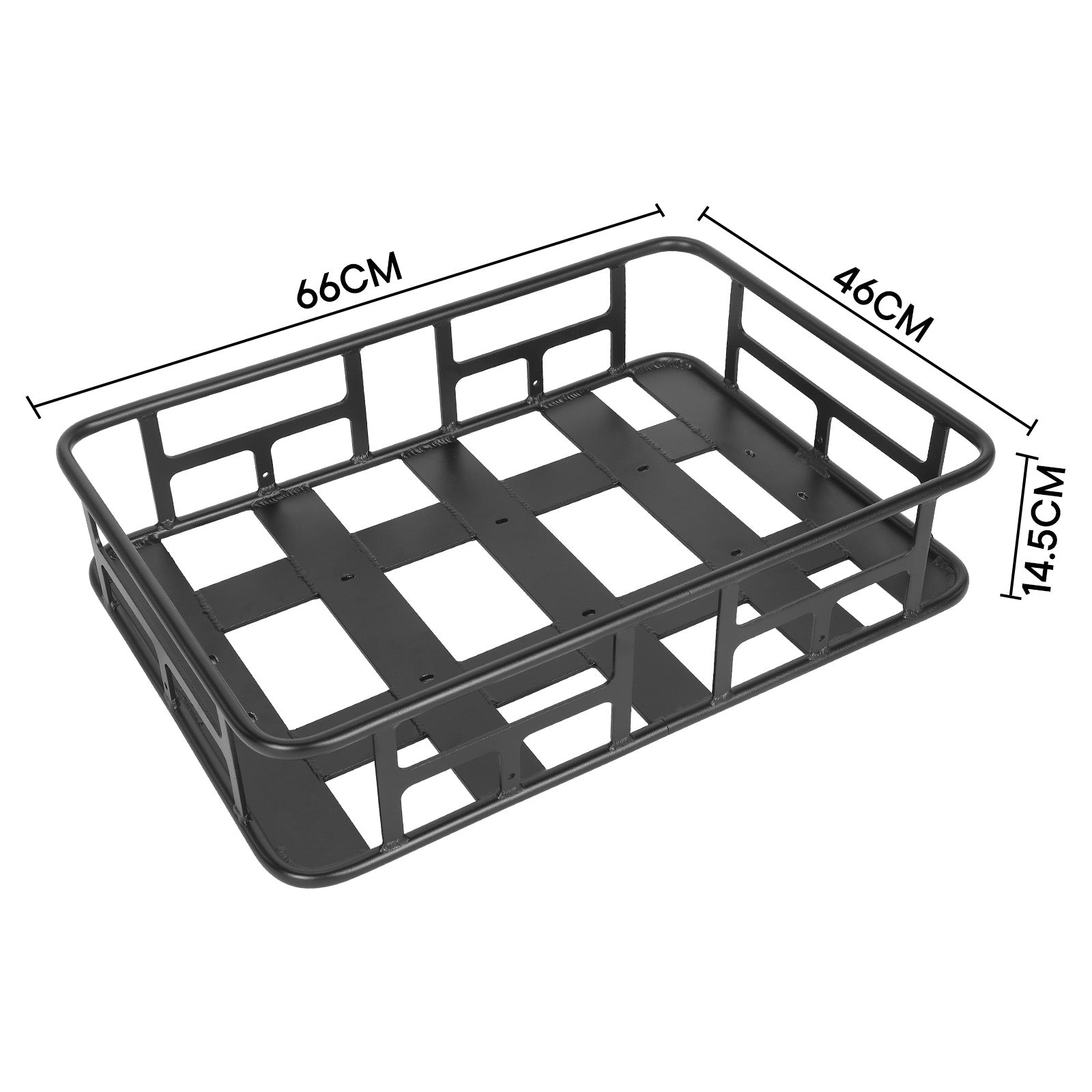

| Rear Cargo Basket Size (L×W×H) |
66 × 46 × 14.5 cm |

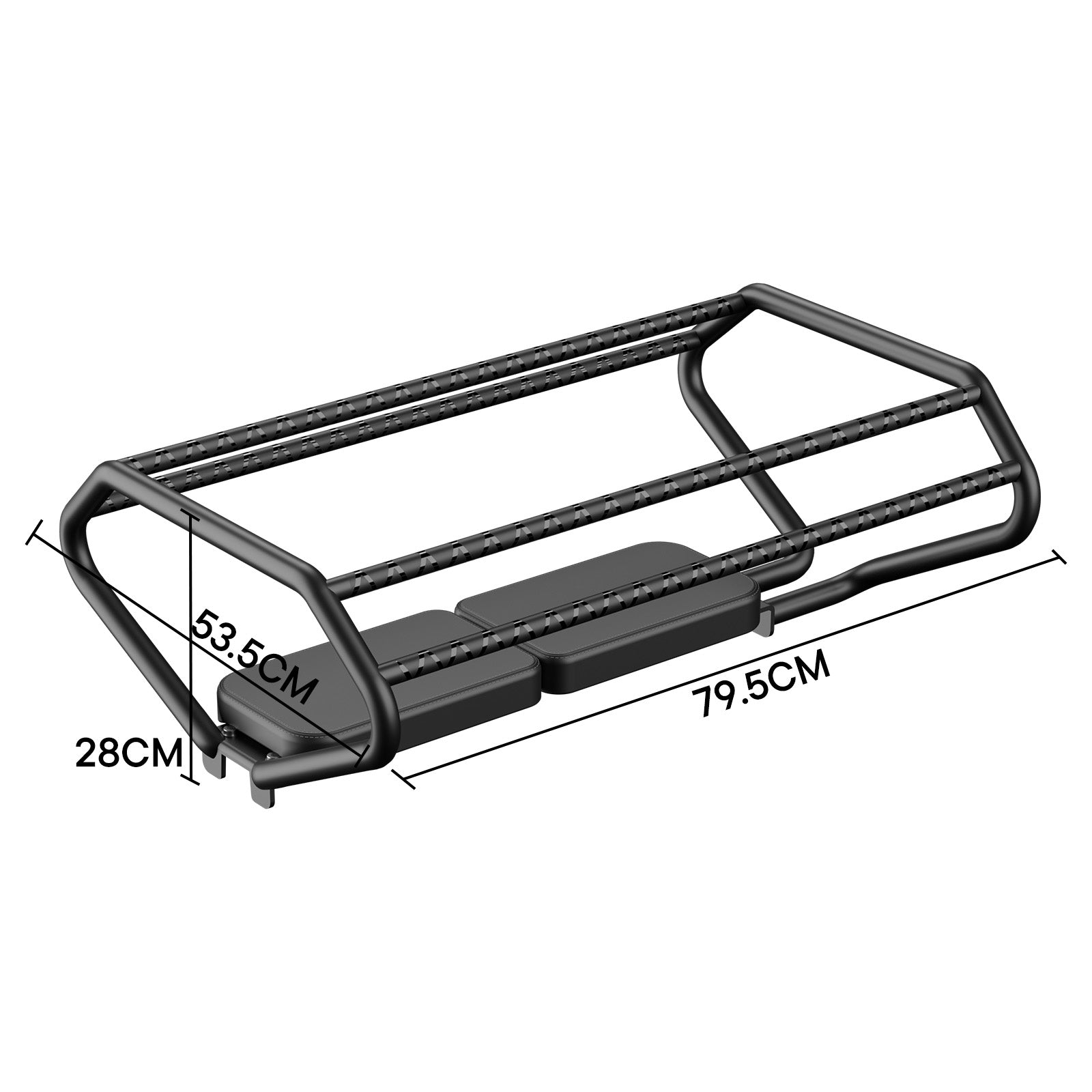

| Rear Child Seat Size (L×W×H) |
79.5 × 53.5 × 28 cm |
| Pedal-Ground Distance |
11 cm |
| Recommended Rider Height |
160 – 200 cm |
