SPECIFICATIONS

Brand Name: Mcezdy

High-concerned chemical: none

Origin: Mainland China

Type: Display




Product Name: L5 Bicycle Accessory

Functions: Battery indicator; headlight control; boost function; assist levels; speed display; trip/total mileage; running time; metric/imperial conversion; fault indicator; walking; PAS levels; speed; riding time; error warning

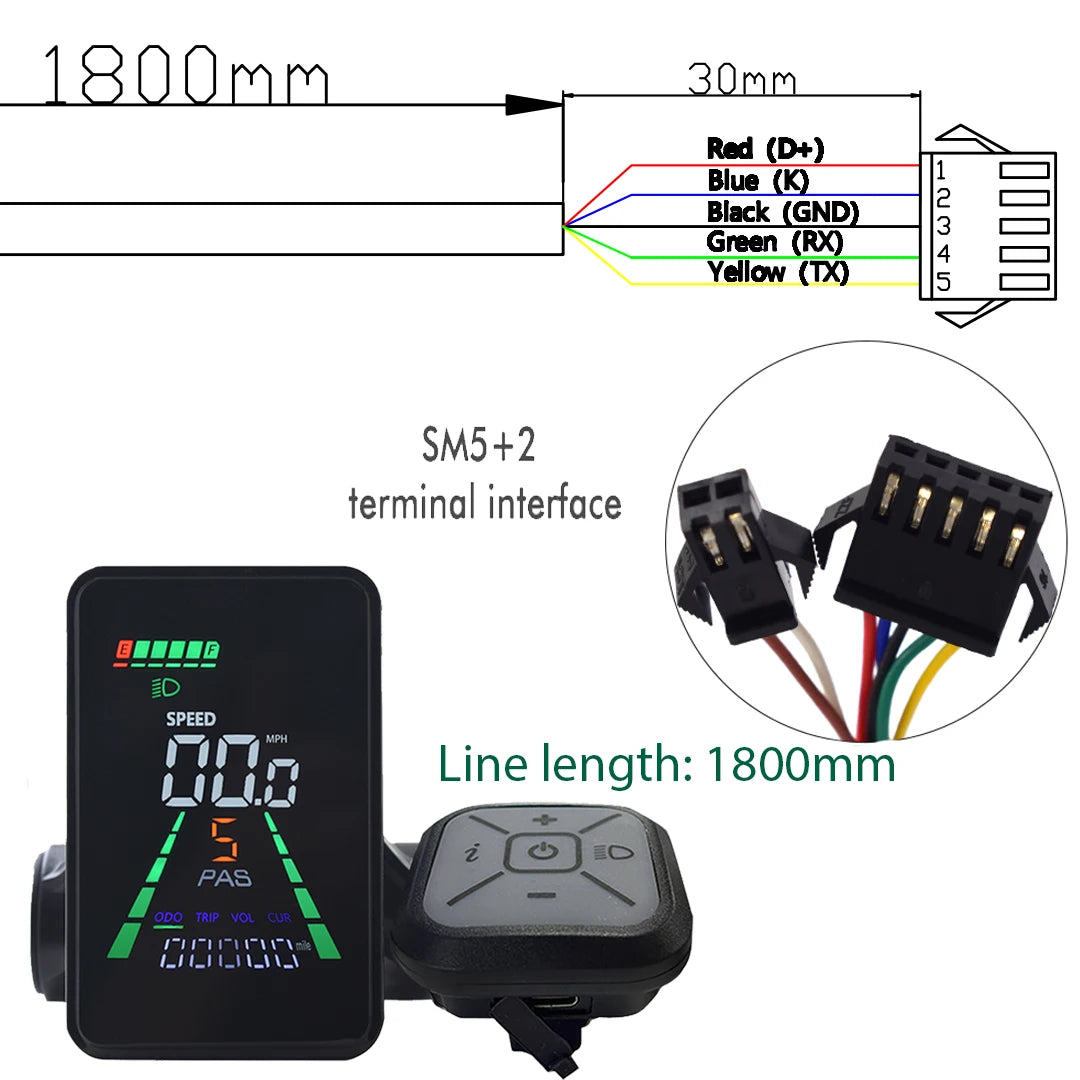

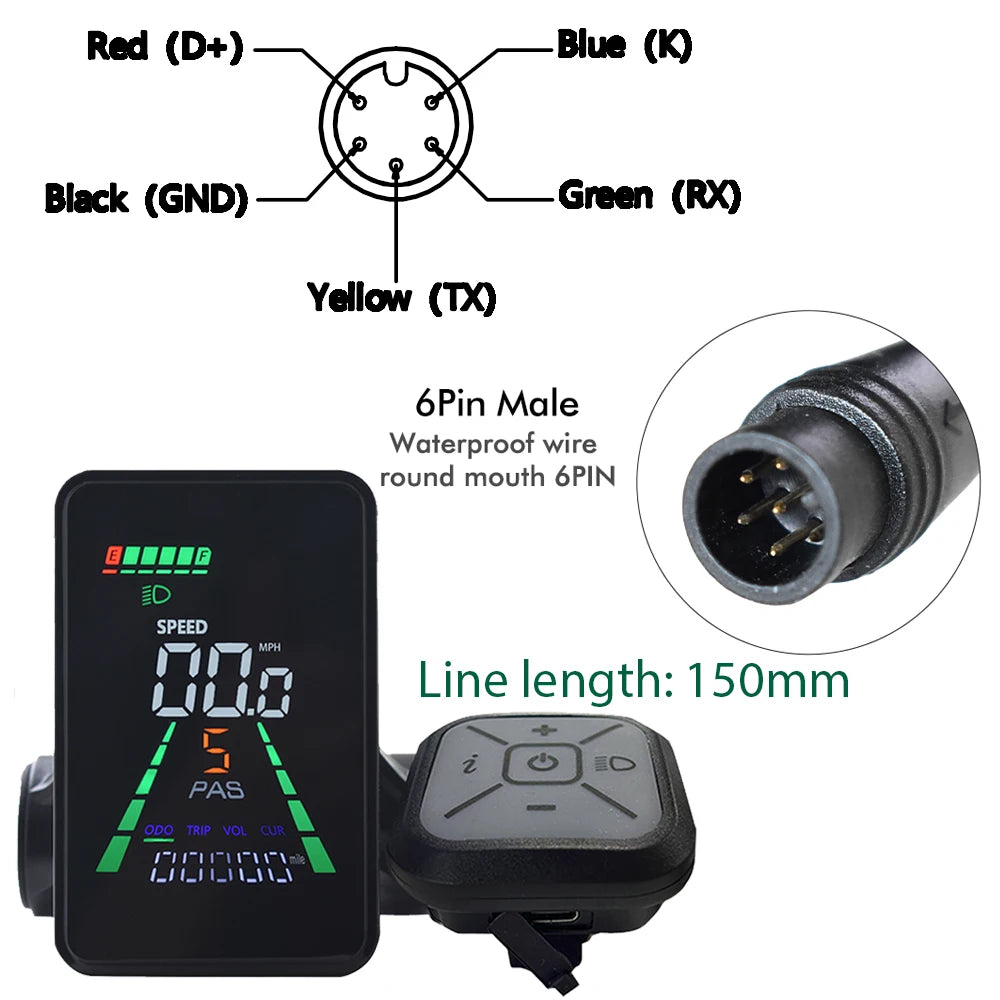

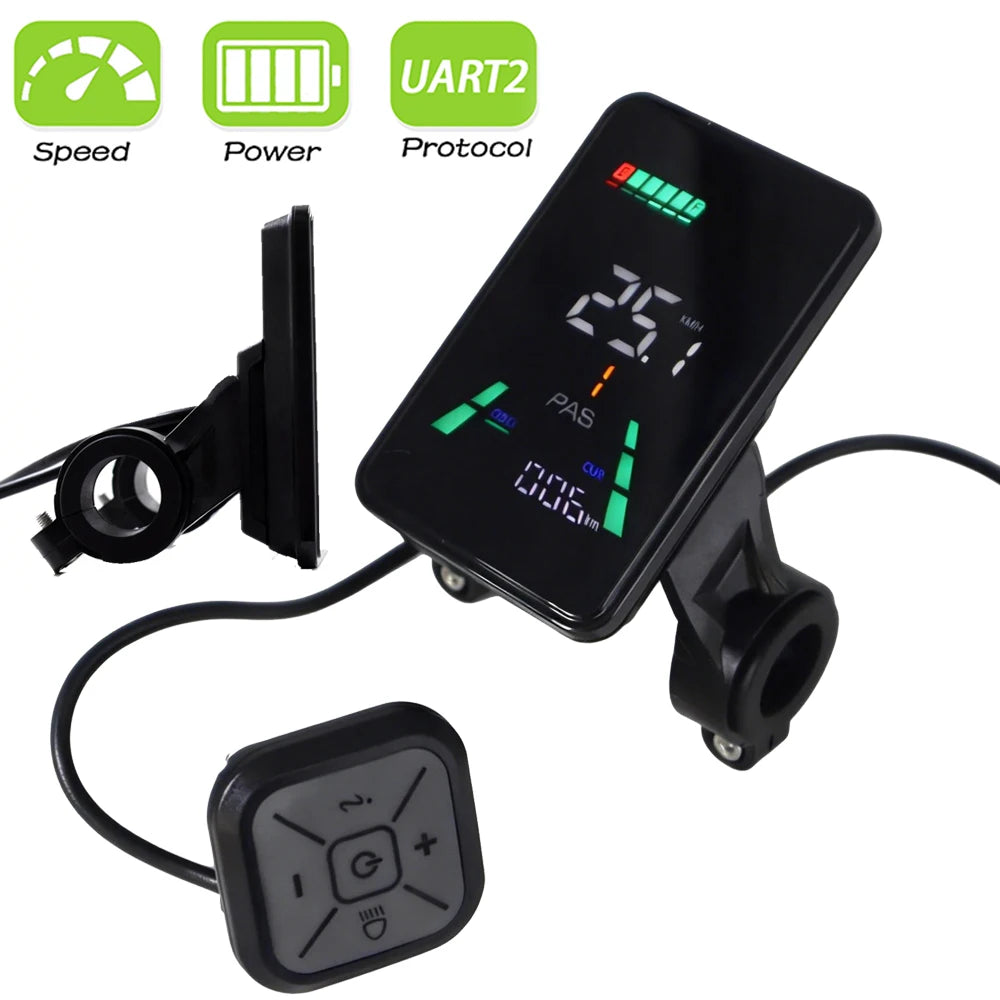

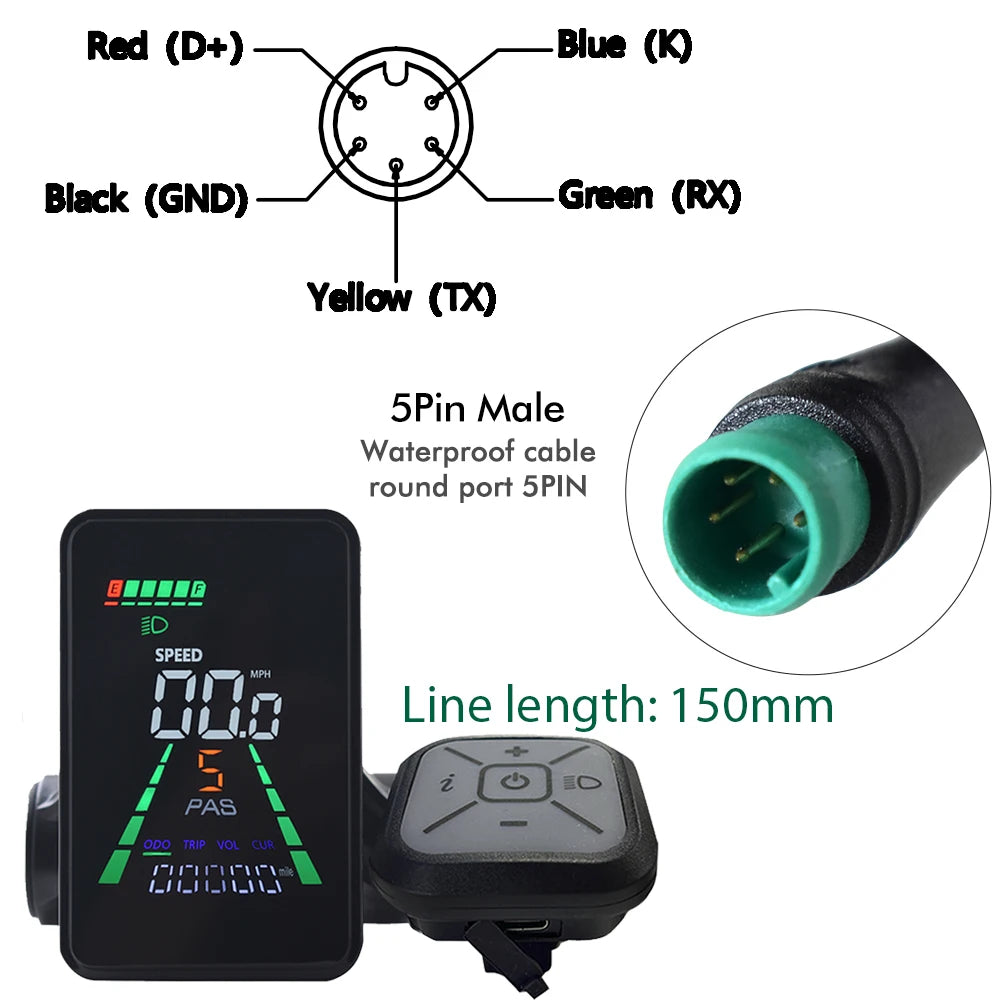

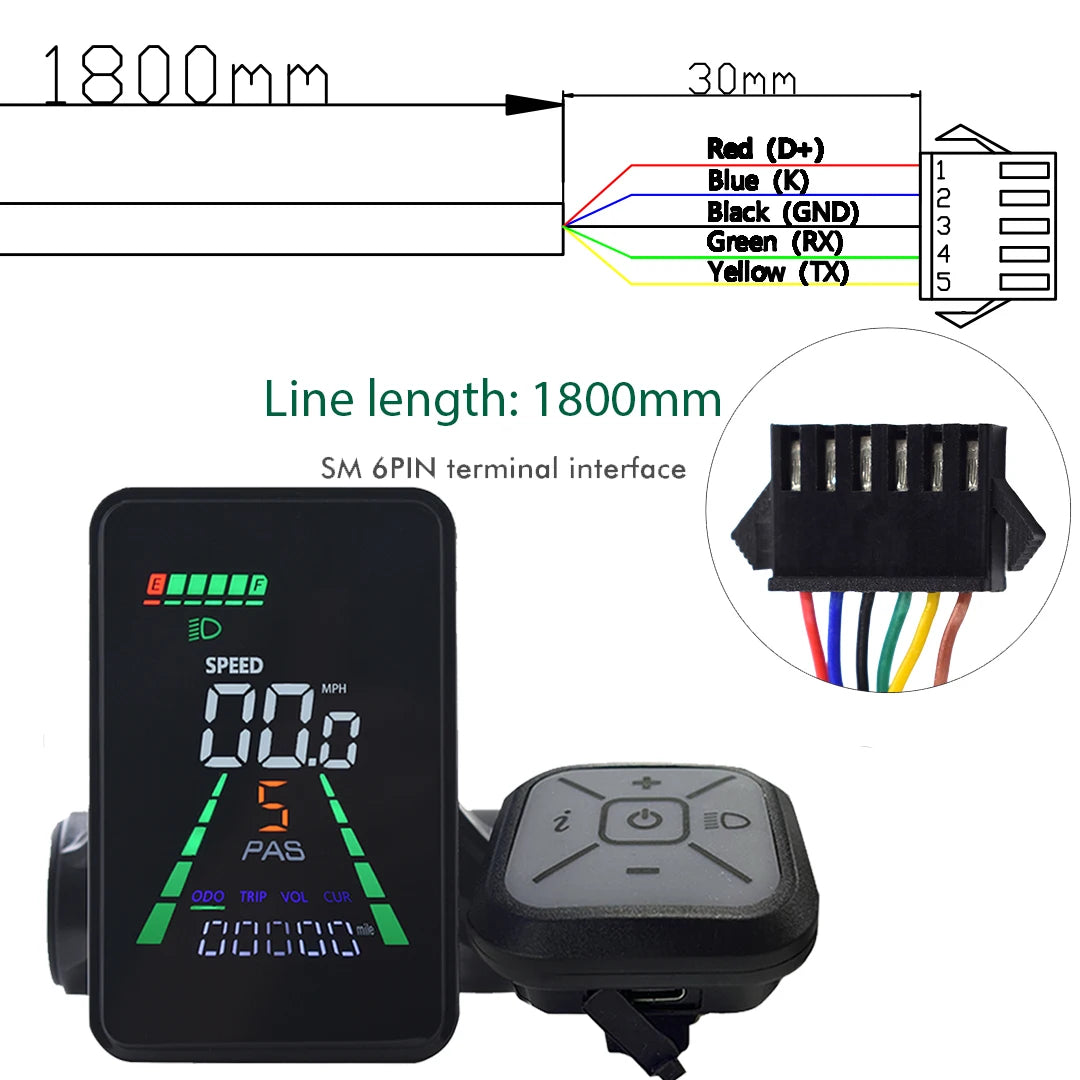

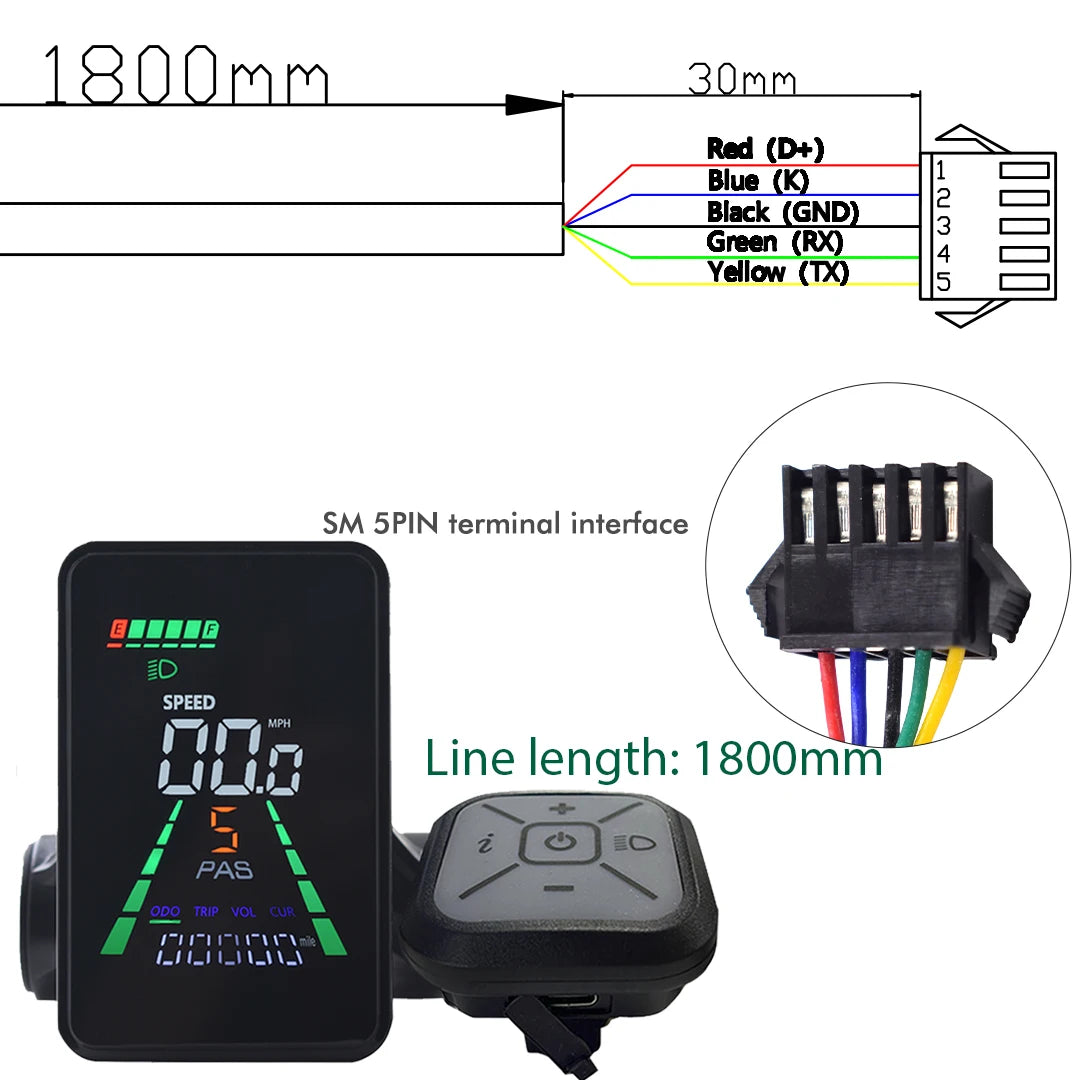

Communication Method: UART 2

Compatible Handlebar Sizes: 22.2mm / 25.4mm / 28.6mm / 31.8mm

Compatible Voltage: 24V / 36V / 48V / 60V

USB Charging: 5V / 500mA

Q: What kind of car is suitable?

A: Sorry, due to the different internal parts of the vehicles, we cannot determine which model is suitable. We only apply the UART2 protocol controller.

Q: I don't know the agreement. How can I check it?

A: You can look for it from the appearance of the controller, the manual of the controller or the old display screen, and the seller of the controller or the old display screen.

Q: Can the UART protocol be used?

A: No, there are many protocols in UART, such as bafang, kds, etc. UART2 is just one of them

Q: May I ask if the speed limit can be lifted?

A: It depends on whether your car is limited by the controller or the display screen. If the controller limits the speed, there is no way to lift the speed limit. If the display screen limits the speed, the speed limit can be lifted

Q: Can I try out this product? If it doesn't suit me, can I return it?

A: No, no returns or exchanges for non-quality issues.

Q: What voltage range does your display screen support?

A: Our display supports 24V/36V/48V/60V.(The S810 only supports 36v.)

Q: How to change the speed?

A: You can enter the menu by long pressing the + and - keys, and then short press the power button to switch to P08. After entering P08, use the + key to set the desired speed. After adjusting, long press the + and - keys to save and exit the menu.

Q: Is an immediate speed limit of 25 kilometers supported?

A: The specially customized version can support a fast speed limit of 25 kilometers per hour, while the regular version does not.



Tips: The protocol of this product is UART2. If it does not match the protocol of the controller, it may not work properly!


The default speed of our product is unlimited (100). If your controller has a speed limit, our display can only display the corresponding speed.


Note

Product is No. 2 communication protocol, need to be used with No. 2 communication protocol controller, otherwise it is not compatible


Questions & Answers

Q:After connecting the instrument, the instrument interface displays E10


A:① The communication protocol used in the instrument and controller does not match, and the two cannot communicate;

② The original condition of the entire vehicle is already in poor condition. One of the three devices, namely the booster, rotary knob, and motor, not only breaks down but also has a short circuit. At this time, the controller not only cannot detect it, but also causes the controller to not work, resulting in communication failure between the instrument panel and the controller;
